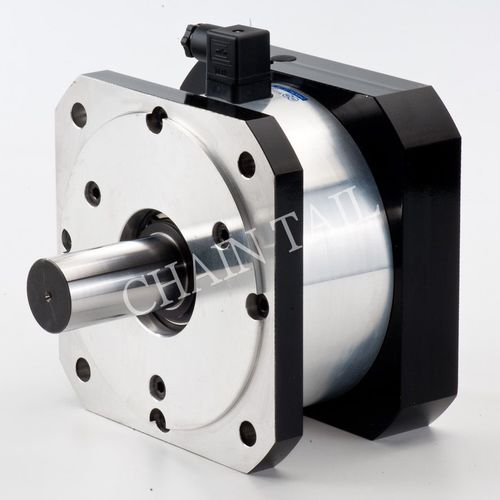

Disc brake unit PBN Series
electromagnetic releasefor servo motorssafety

disc brake unit
disc brake unit
Add to favorites
Compare this product


Characteristics

Type
disc
Operation
electromagnetic release
Other characteristics
for servo motors, safety, modular, zero-backlash, low-noise, permanent magnet, failsafe
Torque

Min.: 0.35 Nm
(0.2581 ft.lb)

Max.: 100 Nm
(73.7562 ft.lb)

Description

PBN permanent magnet brake module with clamping shaft design can be directly mounted onto servo motors for saving space. This special safety design is applied to the Z axis of machine tools. When servo motors are dismantled for machine maintenance, PBN can stop Z axis from slipping and the inside permanent magnet brake can keep holding the load. Due to the connection between brake and brake shaft is via a spring plate, there is no backlash at the moment of braking, and no drag torque and noises while brake shaft is rotating.
