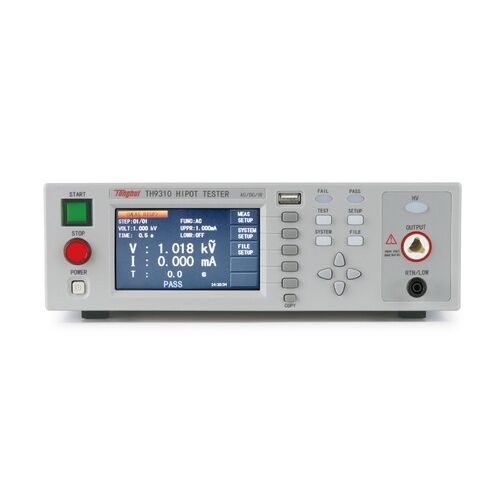

DC hipot tester TH9310 series

AC

Features ■ TH9310 series: AC:5kV/10mA; DC:6kV/5mA AC/ DC withstanding voltage/insulation resistance tester TH9320 series: AC:5kV/20mA; DC6kV/10mA AC/ DC withstanding voltage/insulation resistance tester ■ TH9310/20：AC/ DC withstanding voltage/insulation resistance tester TH9310A/20A: AC / DC withstanding voltage tester TH9310B/20B: AC withstanding voltage tester ■ 480×272 dot-matrix, TFT-LCD display ■ Rapidly discharging and arc detection ■ Randomly set voltage rising time and testing time in 999.9 seconds; Freely set waiting time for insulation resistance ■ Hold 5 testing steps; 4 testing modes selectable ■ Brand new operation interface and concise interface operation design ■ Lock keyboard ■ PLC interface Brief Introduction ■ TH9310/20 series withstanding voltage/insulation resistance tester is an economical and intelligent safety tester with the characteristics of small size, light weight, pleasing appearance and easy operation. TH9310/20 series can be widely used in the safety tests of household appliances, transformer, electrical equipments and components.
