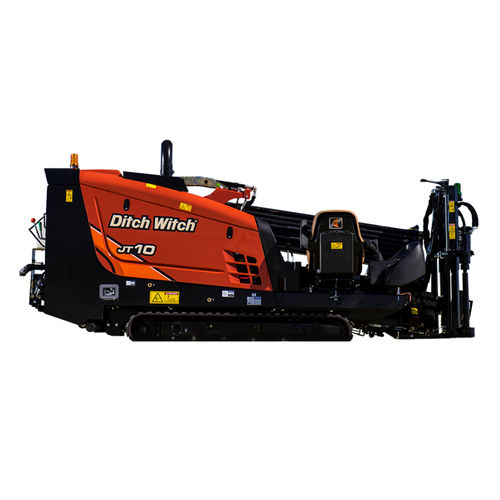

Horizontal directional drilling rig JT10

crawlerrotarydiesel engine

The new Ditch Witch JT10 horizontal directional drill (HDD) boasts unbeatable power in a compact, yet sturdy frame for easy transportation and improved maneuverability on tight jobsites. Powered by a Tier 4, 66-hp (49-kW) Deutz® diesel engine, the machine is the most powerful drill in its class. It offers 10,000 lbs (44 kN) of pullback force, providing the advanced strength and power of bigger drills, combined with the simplicity and easy operation of a compact machine. An innovative design incorporates advanced features of larger drill machines, including a heavy-duty anchor system, open-top vise wrenches and integrated remote display. A redesigned operator's station smooths operation with a single joystick and is equipped with an ergonomic traversing seat for increased jobsite visibility and comfortability on the job. POWER the JT10 is the most powerful drill in its class. A Tier 6i option is available for less regulated countries. COMFORTABLE OPERATORS STATION A newly designed operators station features an ergonomie, traversing seat, positioning the operator near the center of the pipe rack for easy-to-reach pipe handing. EASY MANEUVERABILITY With the shortest profile in its class, the JT10 is easy to set up in tight spaces with rear ignition for faster setup. INNOVATIVE DESIGN The JT10 has the quickest cycle times in its drill class. The machine s slow zone is shortened increasing cycle times and allowing operators to put more pipe in the ground faster.
