Highlights
1 kV Insulation and Continuity Tester
Industrial maintenance
200 GΩ
Test voltage: 50-100-250-500-1 000 V
Manual / Lock / Duration modes, PI / DAR ratios
Alarms, ∆REL
Ergonomics:

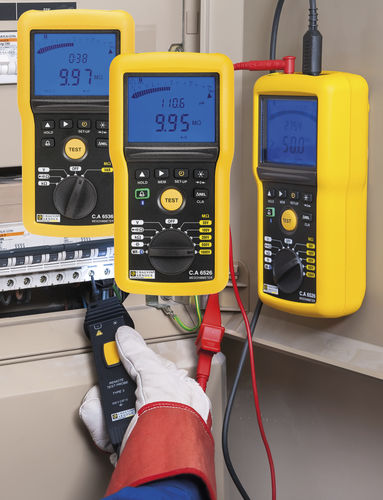

The new C.A 652x & C.A 653x insulation testers are compact, lightweight and simple to use, offering greater comfort for users:
- Casing designed with 600V CAT IV safety and IP54 / IK04 protection for a comfortable grip in total safety with easy access to the TEST button, even when the user is wearing safety gloves
- Magnetic stand for fixing the product on a metal surface so that users have their hands free when measuring and reading the result
- Wide backlit screen with double digital display and logarithmic bargraph, secondary display showing the actual test voltage, the test current and the timer value, in addition to the value measured
- Remote control with torch for error-free identification of the points of measurement, even in environments with poor lighting
Insulation tests:
This new range is equipped with various insulation test voltages ranging from 10 V to 1 kV. The dynamic range for insulation measurement extends up to 200 GΩ, remaining compliant with the IEC 61557 standard up to 2 GΩ.
In addition to the manual mode, there are also new insulation test modes such as Lock mode, Timer mode and calculation of the PI & DARratios.
Continuity tests:
The continuity test function, which complies with the IEC 61557 standard (200 mA current), is enhanced on certain models with a 20 mA test current, with the advantage of prolonging battery life in normal use. This function is equipped with activefuselessprotection if a voltage is present.
