electrical network analyzer / power quality / portable / compact
C.A 8333 CHAUVIN ARNOUX

{{requestButtons}}

Characteristics

  • Measured entity:

    for electrical networks

  • Measured value:

    power quality

  • Configuration:

    portable

  • Other characteristics:

    compact

Description

Advantages

Direct access to the main functions (configuration, etc.)
Direct access to the measurements (harmonics, flicker, etc.)
Voltage/current inputs with colour-coded inserts
Large colour TFT screen for easy reading
Battery life of 13 hrs

Description

All the parameters simultaneously

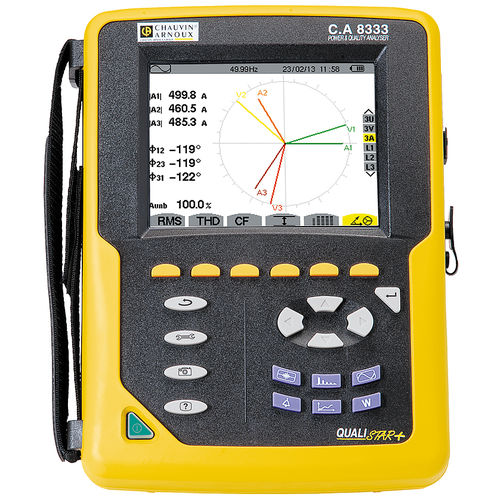

Designed for test and maintenance departments working in industrial or administrative buildings, the Qualistar+ C.A 8333 can be used to obtain a snapshot of the main features characterizing the quality of the electrical network.. This analyser's functions make it the ideal instrument for preventive or corrective maintenance. It can also be used to perform a complete energy survey of an installation.
For sizing installations or troubleshooting switching faults, the C.A 8333 is equipped with a transient mode which allows users to measure the inrush current over 4 periods.
Easy to handle and particularly compact, this instrument also offers a large number of calculated values and several processing functions. The C.A 8333 is equipped with 3 voltage measurement channels and 3 current measurement channels. The C.A 8333 captures and records all the parameters, transients, alarms and waveforms simultaneously.

When current sensors are connected to the C.A 8333, it recognizes them automatically. It also offers the possibility of mixing different types of current sensors and configuration of the ratios allows direct reading of the measurements.
