Wire map cable LAN network tester
C.A 7028 CHAUVIN ARNOUX

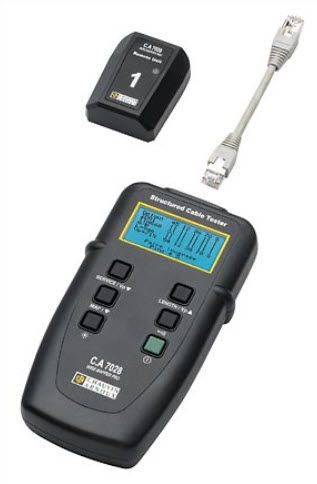

Professional and economical, the C.A 7028TM Wire Mapper is a professional cabling tester and fault identifier on data and voice networks and installed links.
Equipped with a complete range of functions, it is useful for communications engineers and technicians, telecommunications teams looking for faults, linemen and communications companies.
The Wire MapperTM is also a useful tool for IT managers and administrators when locating faults or upgrading an existing network.

# Locates and identifies faults up to 150m or 500ft: cut, short-circuited, crossed or separated pairs, short-circuits between pairs, pair inversions and sheath / screen continuity; faults at the end of the link or installed line.
# Length of cable or link (in m or ft)
# Types of cables tested: UTP & STP (SSTP & FTP) as per TIA568 A/B, ISO, EN, USOC and ISDN standards
# Graphic backlit LCD display 128x64 pixels
# Protection / Safety: alert for services active on the cable
# Built-in sound frequency generator for locating and identifying cables
# Dim. transmitter: 165x90x37mm – ident.: 65x52x25mm
# Weight: 350g / 40 g
