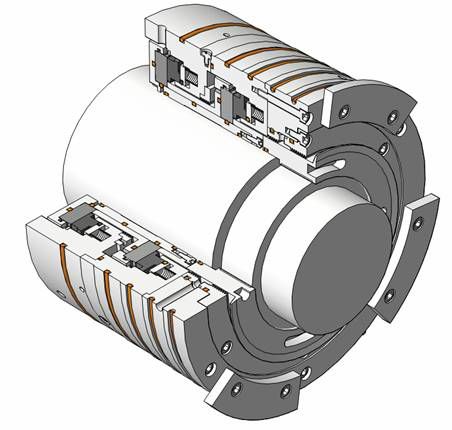

Cartridge mechanical seal YTG804
for agitatorsfor mixersfor compressors

cartridge mechanical seal
cartridge mechanical seal
cartridge mechanical seal
cartridge mechanical seal
Add to favorites
Compare this product


Characteristics

Type
cartridge
Applications
for agitators, for mixers, for compressors
Domain
process
Other characteristics
gas-lubricated, dry
Operating pressure

Min.: 0 Pa
(0 psi)

Max.: 800,000 Pa
(116 psi)

Operating temperature

Min.: -104 °C
(-155 °F)

Max.: 280 °C
(536 °F)

Description

Characteristics Other characteristics: gas-lubricated Product applications: for compressors/turbo-compressor/centrifugual pumps Operating pressure: 0~17.2MPa (0~ 2.49psi) Operating temperature: Min.:-104℃ (-155.20°F); Max.: 280℃ (535.99°F) Speed: Min.:1000 rpm; Max.: 18000rpm Size: Min.:50 mm (1.9in); Max.: 200mm (7.8in) Materials: stainless steel/rubber/graphite Design/Structure 1. Adopt the fluid dynamic pressure groove to assure the reliability 2. Light material for rotary ring can reduce the sealing effect on the dynamic performance of the compressor rotor 3. Tandem structure with intermediate comb can ensure the two levels gas leakage (discharge into atmosphere) without process gas 4. Non-contact operation 5. Easy for installation and maintenance Competitive power 1. High-performance and competitive price 2. Longer service life and low energy consumption 3. Perfect corrosion resistance 4. Can be custom-made 5. Prompt delivery and best service Application industry Our products have been widely applied to petroleum, chemical fiber, fertilizer, oil refining, papermaking, nuclear power, power plant, metallurgy, food, pharmaceuticals, etc. Main products are mechanical seal, dry gas seal and many kinds of seal control systems, applying to rotating equipments.
