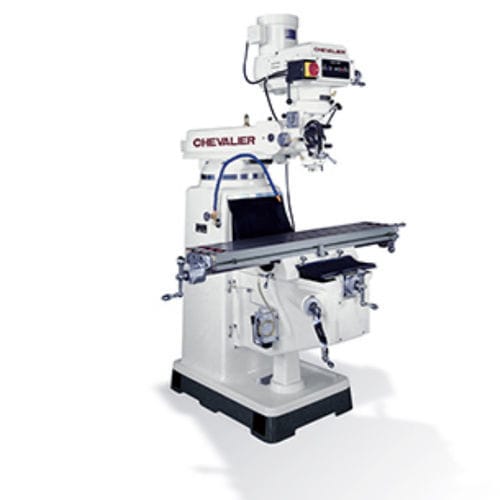

3-axis milling machine FM series
verticalautomatichigh-precision

3-axis milling machine
3-axis milling machine
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Other characteristics
automatic, high-precision, with turret, variable-speed

Description

Dynamically Balanced Motor and Ground Pulleys. Chrome-Plated and Bearing Supported Motor Shaft Provides An Extremely Smooth, Low Vibration Quiet Drive. High Precision Spindles Use Class 7 Angular Contact Bearings. Spindle Runout Guar Anteed to be Within 0.00015". The Dovetail and Square Slideways of The Table, Saddle and Column Are Laminated With . Turcite-B, Hardened and Ground For Precise, Smooth And Wear Resistant Movement. The hard chrome quill is ground to mirror finish to ensure smooth movement. Double-nut Mounting of table and saddle lead screws eliminates backlash. One-piece Pinion Gear and Shaft; one-piece worm gear & shaft. Specification Dovetail Ways / Square Ways Table Size: Up to 254 x 1270mm (10"x 50") Table Load: Up to 450kg(990lb) Spindle Speed: up to 60~4,000rpm Spindle taper: R8 or NST30 Quill Travel: 127mm(5”) Vises B95-0101 Angle Lock Vise W/Swivel Base 6" (150mm) B95-0102 Angle Lock Vise W/Swivel Base 8" (200mm) B95-0105 6" Vise W/Swivel Base 6" (150mm) BL96-0304 Angle Lock Vise W/Swivel Base 6" (150mm) BL96-0305 Kurt Angle Lock Vise 8" (200mm) BL96-0314 Kurt Swivel Base For 6" Vise. BL96-0315 Kurt Swivel Base For 8" Vise.
