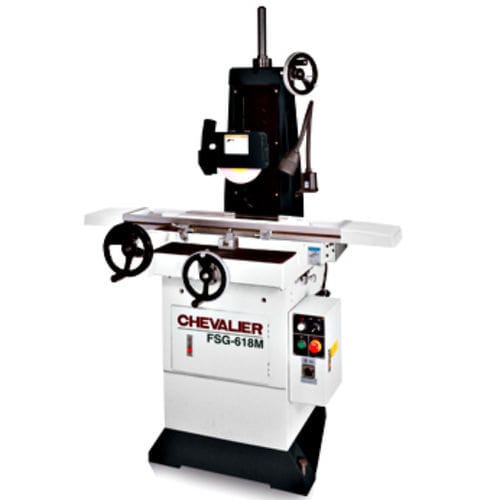

Surface grinding machine FSG-618M
workpiecemanualhigh-precision

surface grinding machine
surface grinding machine
Add to favorites
Compare this product


Characteristics

Type
surface
Applications
workpiece
Control type
manual
Other characteristics
high-precision, stationary
Spindle speed

3,450 rpm
(21,677 rad.min-1)

Power

2 ch
(2 hp)

Y travel

480 mm
(19 in)

Description

The tool cabinet in machine base is specially designed for operator’s convenience (618m). The interlock between electrical cabinet door and power supply is established to ensure safe operation. The maximum distance from table surface to spindle centerline is 18" (450mm) which provides more clearance for grinding. The sping loaded type table travel stops will dampen theovertravel caused by abnormal operations (618m). The optimum span of double V crossfeed guideways is designedbased on bending moment, kinematics supporting force. All essential castings are mode of high grade of meehanite castiron that is stress relieved through annealing to eliminateinternal stress. With the greatest stiffness and stability of the castings, this machine is suitable for both precision surface grinding and formgrinding . This grinder is offered with one-full-year limited warranty formechanical and electrical parts . Ball Table ways Double "V" + Turcite-B on Z-Axis Table Travel: 175 x 480mm (7" x 19") Chuck Size: 150 x 450mm (6" x18") Table Surface to Spindle Center: 450mm (18")

VIDEO
