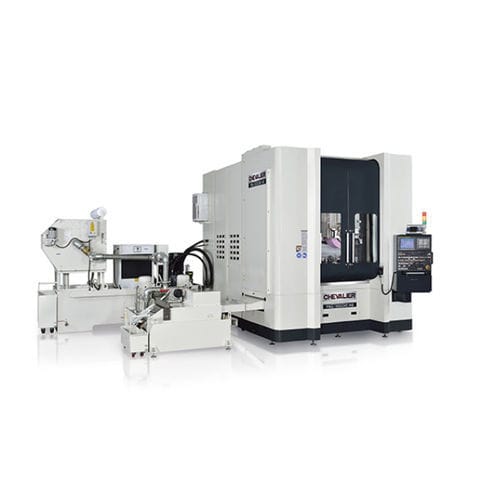

Workpiece grinding machine FMG-1632CNC-HD

CNCstationary3-axis

FMG-1632CNC With accumulated experience in designing, production, application and software integration of CNC profile grinding machine, and combine with the market demand for more automatic and higher efficient machine, this high production grinding centers has been developed. The flexible and creative design and powerful function make the machine suitable for current and future grinding requirement, such as complicated shape workpieces, difficult machining material & hard and brittle material with high grinding efficiency and high accuracy. Automobile industry. Punch mould industry. Medical instrument industry. Ceramic and quartz industry. Semiconductor industry. IT industry. Aerospace industry. Textile industry. Cam plate and shape machining industry. Many other applications. Rapid on (X/Y/Z) axes: 25/3.8/4 m/min. Positioning accuracy: JIS B6338-1985 0.004mm. Positioning accuracy: VDI 3441 P 0.010mm. Repeatability accuracy: JIS B6338-1985 +-0.002mm. Repeatability accuracy: VDI 3441 PS 0.010mm. Table Size (W x L): 400 x 810mm (16" x 32") Max. Table Load: 1,500kg (3,326 lbs.) Column moving, and capable of Creep Feed function Table Speed: X-Axis 10~25,000mm/min (0~88fpm) Y-Axis 0~3,800mm/min (0~12.5fpm) Z-Axis 0~4,000mm/min (0~13fpm) Electromagnetic Chuck: 200 × 300mm/ 400 × 800mm Chuck Control Dresser Auto. retracting table mount dresser Universal table mount disc dresser with coolant pipe Table mount disc dresser with double support Over-the-wheel rngle adjustable disc dresser Coolant System Indexer Balancing Stand (Roller type) balancing stand (20").
