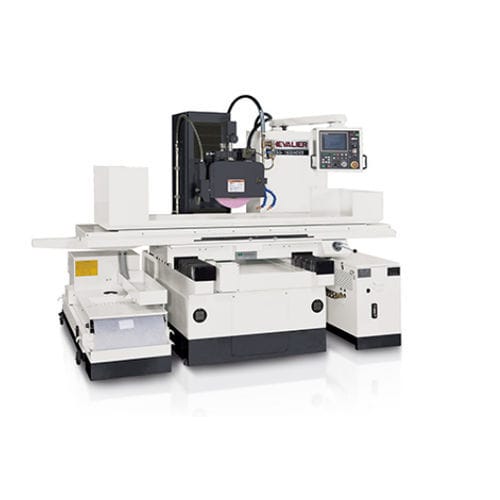

Surface grinding machine FSG-1632 ADIII

workpieceCNCautomatic

The highly advanced ADII series of automatic precision surface grinding machines are a result of the ongoing and extensive research and development program at CHEVALIER In addition to improved accuracies, quality, and machine life, the overall design of the machine incorporates ergonomics; all operating handwheels,levers,stroke setting devices, and the pendant control panel are arranged to allow ease of operation, therefore, working effi ciency is increased. Specification Touch Screen Monitor Table Size (W x L): up to 400 x 1,000mm (16" x 40") Auto Dressing and Compensation (Optional) Elevation is Driven by Servo Motor Optional -Machine lamp. -Grinding wheel. -Chuck controller. -Wheel flange. -Parallel dressing attachment (manual type). -Dual face dresser adapter for mounting diaform dresser . -Universal wheel guard & nozzle. -Balancing stand with leveling bubble . -Balancing stand (roller type). -Single face dresser. -Electromagnetic chuck. -Over-the-wheel auto. Straight line dressing & compensation device. -Parallel dressing attachment (hydraulic). -Rotary diamond dresser . -Single side water baffle saddle locking device frequency converter for spindle . -Dust collector. -Coolant system with double filter. -Coolant system with auto. Paper feeding device & magnetic separator (with 1roll of paper). -Coolant system with auto. Paper feeding device (with 1 roll of paper). -Coolant system with manual paper feeding device.
