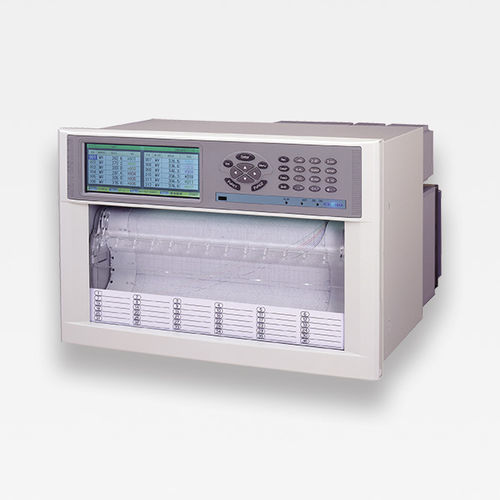

Digital recorder LE5000 Series

charttemperatureuniversal

LE5000 series is recording width 250mm, high accuracy hybrid recorder. Standard type LE5100, computation type LE5200 is 0.1sec./36-point high speed sampling type, and LE5300 which can be used as multiple point data acquisition unit, can measure up to 336-point by connecting to input unit through RS-485 communication in addition to 36-point input of LE5300 itself. - By using 10 colors wire-dot raster scan recording, it achieved approx. 3sec./a line high speed recording. - Accuracy ±0.05% (depending o the range) - Total 48 types of multiple range input. (e.g. DC voltage, thermocouple, resistance thermometer etc.) - Texts and numeric values are easy–to-read by 640×240 dots color LCD panel display. - Data can be saved in CF card. Stored data can be analyzed by data analysis software (sold separately) dedicated to PC. - It has data calculation functions and calculation result can be displayed and recorded. - Ethernet and RS-422A/485 communication I/F can be added.
