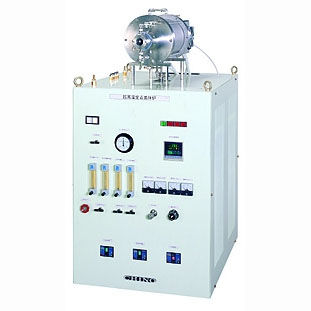

High-temperature black body calibration source IR-R80 Series

for pyrometers

IR-R80 is High-Temperature Fixed Point Blackbody Furnace using metal-carbon eutectic fixed points developed by National Institute of Advanced Industrial Science and Technology (AIST). Up to now, radiation thermometer fixed point calibration was the highest 1085ºC (Copper), however, IR-R80 has achieved high-temperature fixed point calibration at 2474ºC for Radiation Thermometers. - Fixed point calibration of 0.65μm standard radiation thermometer IR-RST65H is enabled by blackbody cavity opening diameter φ3mm. - Seven types of fixed point crucibles are available from 1100 ºC to 2500 ºC. - Power saving by using carbon-carbon fiber composite cylindrical sheet for heating element.
