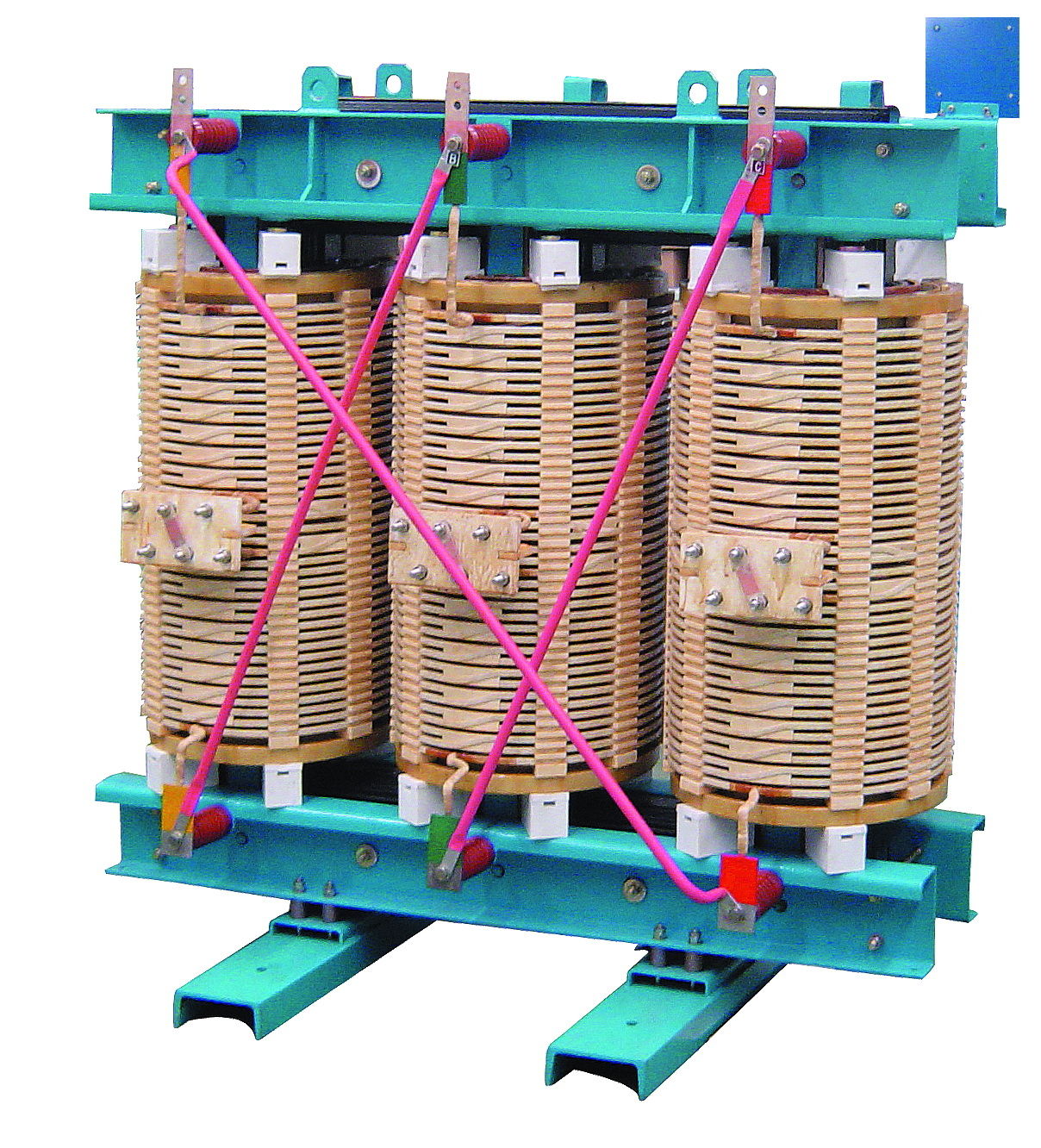

Dry type distribution transformer
10 kV, H-class
Chint Electric Co.,Ltd.
10kV H-class Insulation Dry-type Transformer
Application: for power distribution system and industrial enterprises, etc.
Standards: IEC 60076-11
Features:
High security and reliability in operation.
Economic and efficient to reduce network loss and working cost.
Low noise.
Low partial discharge.
Operation in moist place with high moisture-proof capability.
Customized transformers are available on your requirement.
Technical Data:
Rated Voltage: 10kV.
Rated Capacity: 200-2500kVA.
Vector group: Dyn11/Yyn0
No-load loss: max. 3600W.
Short-circuit impedance: max. 8%.
