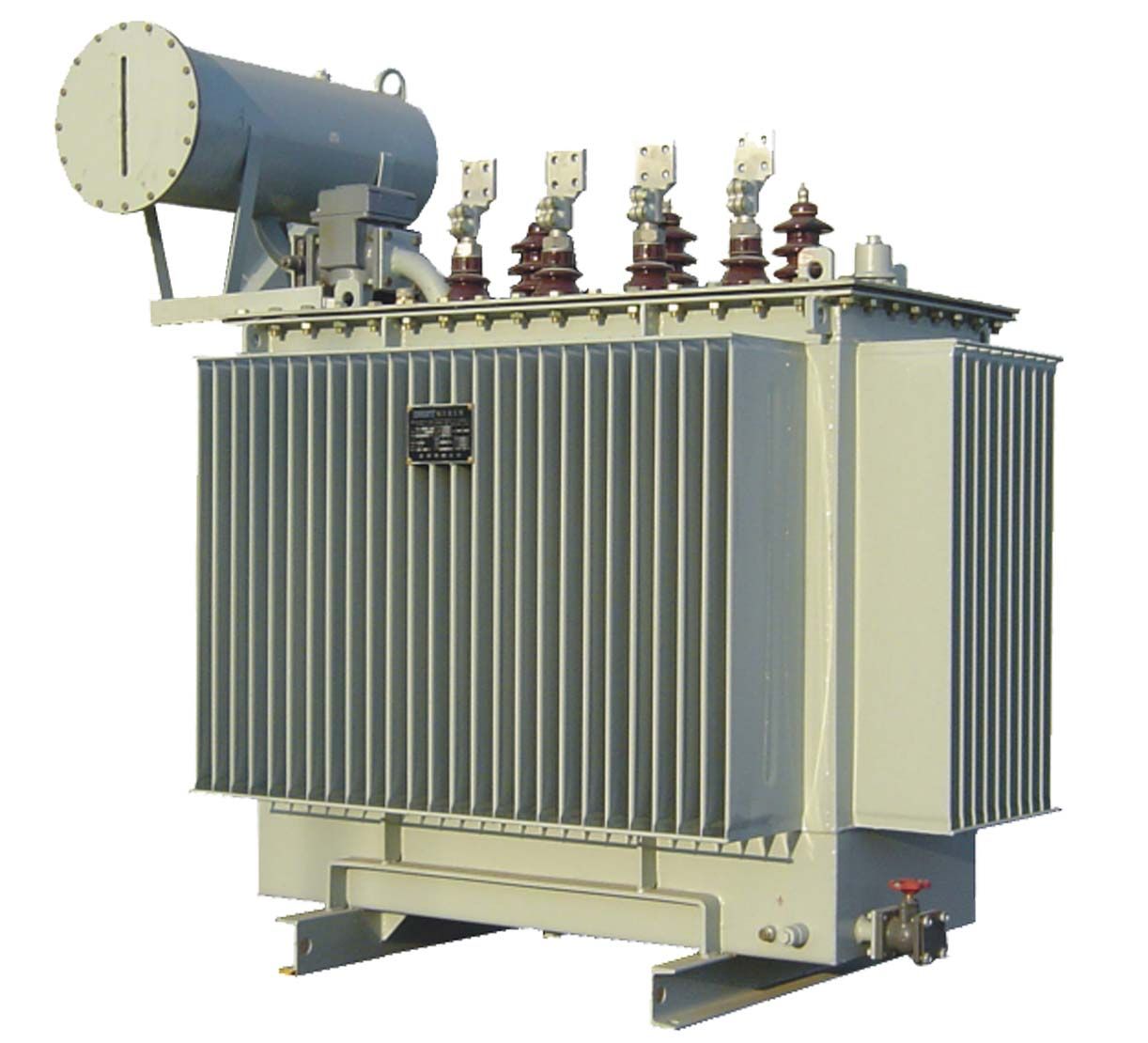

Oil filled distribution transformer
10 kV
Chint Electric Co.,Ltd.
10kV Oil-immersed Distribution Transformer
Application: for power distribution system and industrial enterprises, etc.
Standards: IEC 60076-1, IEC 60076-2, IEC 60076-3, IEC 60076-5; ANSI, IEEE, AS, etc.
Parameters:
Rated Voltage: 50/60Hz 10kV.
Rated Capacity: 30-6300kVA.
Features:
High security and reliability in operation.
Economic and efficient to reduce network loss and working cost.
Low temperature rise.
Low noise.
Suitable for long time transportation under various conditions.
Customized transformers are available on your requirement.
Competitive short delivery time.
S9(M)-30~3150/10, theree-phase oil-immersed distribution transformer with NVTC:
Rated capacity (kVA) : 30 to 3150
Rated voltage and tapping range:
- HV:6 to 11
- Tapping range: ±5, ±2×2.5
- LV: 0.4
Vector group: Yyn0, Dyn11
No load losses (W): 100 to 800
On load losses (W): 600 to 24300
Impedance voltage (%): 4.0 to 5.5
No load current (%): 2.1 to 0.4
* All the data are only examples for your reference.
* Customized transformers are available according to your requirements.
