Padmount distribution transformer
Chint Electric Co.,Ltd.

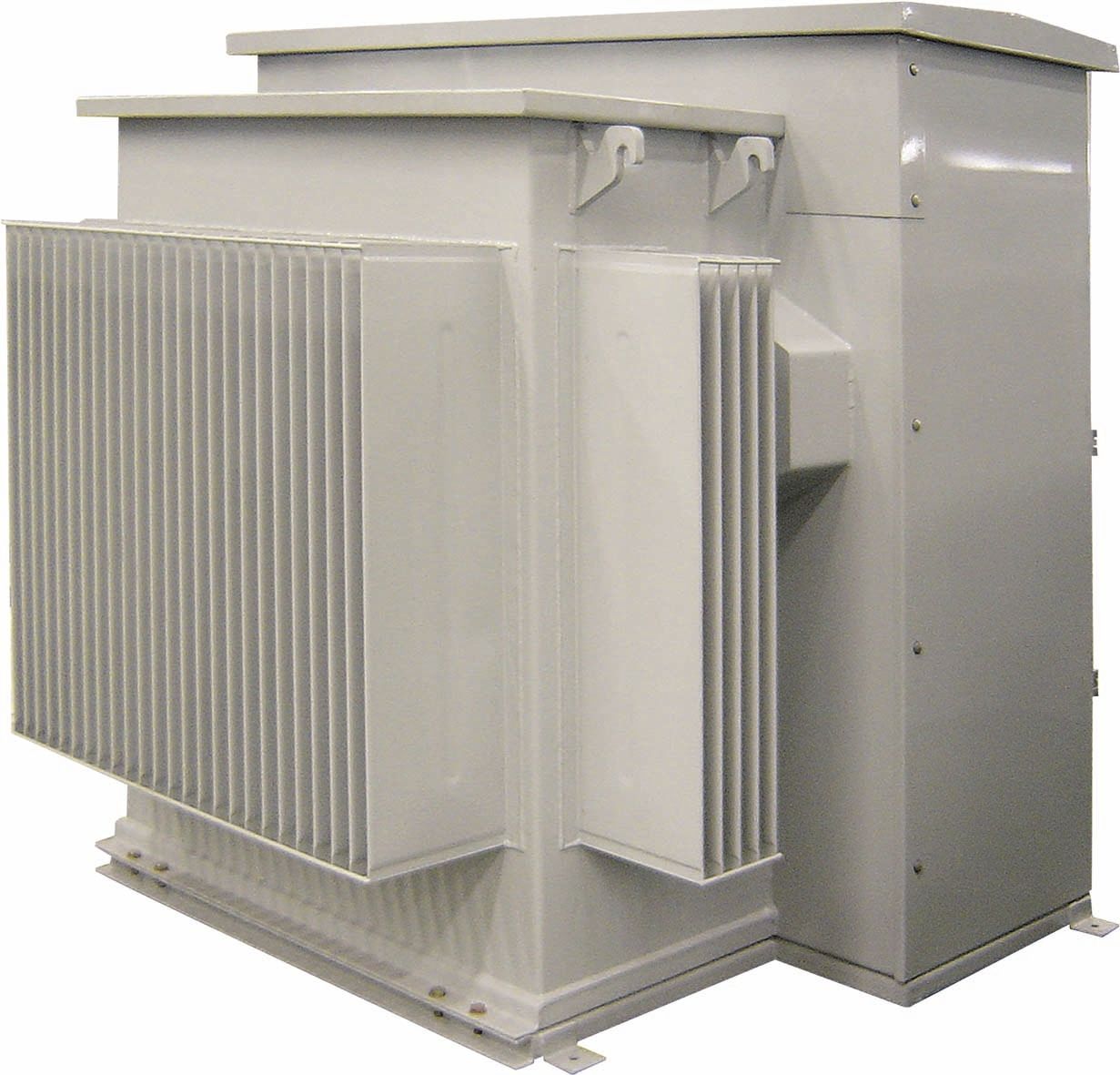

10kV Pad-mounted Transformer
Application: outdoor service, mainly for power distribution.
Standards: IEC 60076-1, IEC 60076-2, IEC 60076-3, IEC 60076-5; ANSI, IEEE, AS, etc.
Rated Voltage: 50/60Hz 10kV.
Rated Capacity: 100-1000kVA.
US type distribution pad-mounted transformer with HV &LV compartments, easy for operation.
High security and reliability in operation.
Economic and efficient to reduce network loss and working cost.
Low temperature rise.
Customized transformers are available on your requirement.
Rated capacity (kVA): 100 to 1250
Rated voltage and tapping range:
- HV: 10
- Tapping range: ±2×2.5
- LV: 0.4
Vector group: Dyn11
No load losses (W): 200 to 1360
On load losses (W): 1500 to 12000
Impedance voltage (%): 4 to 4.5
No load current (%): 1.6 to 0.6
* All the data are only examples for your reference.
* Customized transformers are available according to your requirements.
