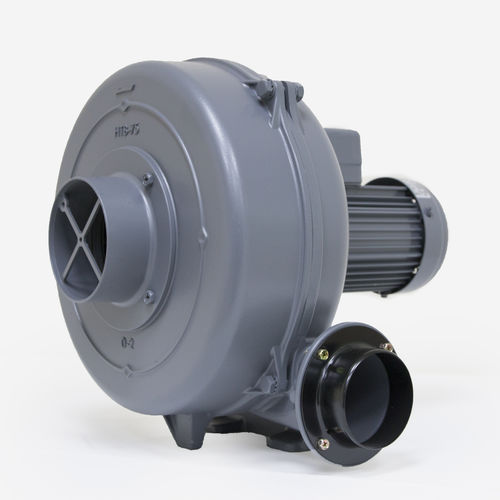

Air blower HTB SERIEScentrifugalsingle-stagemulti-stage
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- centrifugal
- Number of stages
- single-stage, multi-stage
- Applications
- for food applications, for vacuum, ignition, conveying, cooling, discharge, furnace, drying, for ventilation, process, heavy-duty, transport, for boiler, for static charge elimination, recirculation
- Voltage / frequency
- 220 V / 50 Hz, 220 v / 60 Hz, 380 v / 50 Hz, 380 v / 60 Hz
- Norms
- UL, CSA
- Energy class
- IE3, IE2
- Other characteristics
- oil-free, high-pressure, compact, aluminum, positive pressure, direct-drive, low-pressure, three-phase, negative pressure, medium-pressure
- Flow
Max.: 14 m³/min
(494.41 ft³/min)Min.: 6 m³/min
(211.89 ft³/min)- Operating pressure
Max.: 7 Pa
(0.001 psi)Min.: 2.1 Pa
(0 psi)- Nominal power
Max.: 1.5 kW
(2.039 hp)Min.: 0.37 kW
(0.503 hp)- Sound level
Max.: 82 dB
Min.: 68 dB
- Weight
Max.: 31 kg
(68.34 lb)Min.: 11.5 kg
(25.35 lb)- Length
Max.: 484 mm
(19.06 in)Min.: 343 mm
(13.5 in)- Depth
Max.: 520 mm
(20.5 in)Min.: 395 mm
(15.6 in)- Height
Max.: 468 mm
(18.4 in)Min.: 334 mm
(13.1 in)
Description
Chuan Fan Electric multi-stage turbo blowers provide increased pressure and greater flow. They are lightweight due to the use of aluminum alloy material. The IEC designed motor with rated size of 1HP UP, squirrel cage induction motors & specially designed shaft result in continuous operation over long periods. A high-performance impeller ensures reduced noise and an improved service life. The design allows air-flow adjustment resulting in greater control and flow stability.
The blowers are suitable for burning, printing, household, pollution, textile, dryer, cooling and woodworking machines. They can also be used in plastic extruders, lamination, and film making machines, incinerators, hot air blowers, grain elevators, dust collectors, and machineries used in food and beverage industries. Fast delivery is possible as every model has a complete range of styles and adequately finished products.
