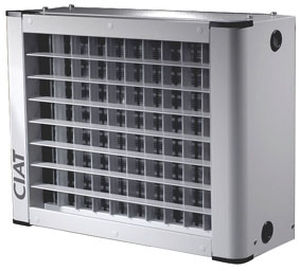

Hot water air heater unit HELIOTHERME H 4000
wall-mounted

hot water air heater unit
hot water air heater unit
hot water air heater unit
hot water air heater unit
hot water air heater unit
hot water air heater unit
hot water air heater unit
Add to favorites
Compare this product


Characteristics

Power source
hot water
Mounting
wall-mounted
Heating power

Max.: 21,900 W
(74,725.87 BTU/h)

Min.: 5,400 W
(18,425.56 BTU/h)

Air flow

Max.: 12,000 m³/h
(423,776 ft³/h)

Min.: 1,000 m³/h
(35,314.7 ft³/h)

Description

Use : HELIOTHERME 4000 is designed for all types of small or large areas (industrial premises or workshops, warehouses, large stores, garages, gymnasiums, multi-purpose halls …). This air heater can be used for overall or back-up heating, either permanently or intermittently, or used simply to keep buildings frost-free. Description : Fan motor assembly with ROTOREX technology available in 3-phase 2-speed version and 1-phase 1 variable speed version (reduced voltage). Fan motor assembly, HEE technology (with EC motor) available in 1 phase 1 variable speed (0-10 volts signal) Double deflector diffuser with JET+ technology as standard. Coils: LP water: 1, 2 or 3 row(s) - Copper tube (AC or HEE version) HP water: 1 row (2 or 3 rows on request) - Steel tube (AC version only) LP/HP Steam: 1 row - Copper-nickel tube (AC version only) Electric: shielded stainless steel resistors inserted directly in the finned block for optimum heat transfer (AC version only) Galvanised steel casing, precoated with RAL 7035 paint Condensate drain pan with perforated bottom and quick connection fitting is built in for cooling or reversible applications.
