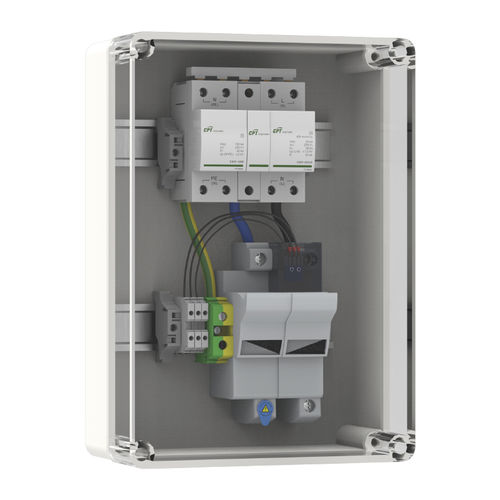

Type 1 surge protection unit CM_CSH-25_MF
class I4-pole2-pole

type 1 surge protection unit
type 1 surge protection unit
Add to favorites
Compare this product

Go to the Cirprotec website for more information

Characteristics

Type
type 1, class I
Other characteristics
4-pole, 2-pole, single-pole, monobloc, DIN rail, low-voltage, AC, single-phase
Voltage

230 V

Max.: 275 V

Min.: 0 V

Primary current

100,000 A

Open circuit voltage

Max.: 2 kV

Min.: 0 kV

Description

CM-CSH are surge protective device board with Type 1/Class I lightning current arresters, able to discharge energy (current) from a direct lightning strike (10/350) on an external lightning protection system (LPS) or overhead supplies, in accordance with IEC 61643-11. DIN rail monobloc format. - Suitable as a first step of protection in incoming power supply panels and in areas of high atmospheric exposure. - Discharges impulse currents with a 10/350 μs waveform: 25 kA per phase. - Follow current quenching capacity. Ifi: 50 kA. - Leakage current free (LCF). - Multidischarge technology. - Board with IP56 - Dimensions: 360x270x170 mm
