laboratory oven / drying / nitrogen / compact
5E-MIN6150 CKIC / Changsha Kaiyuan Instruments Co., Ltd



  • Function:


  • Atmosphere:


  • Other characteristics:

    compact, for moisture measurement, laboratory

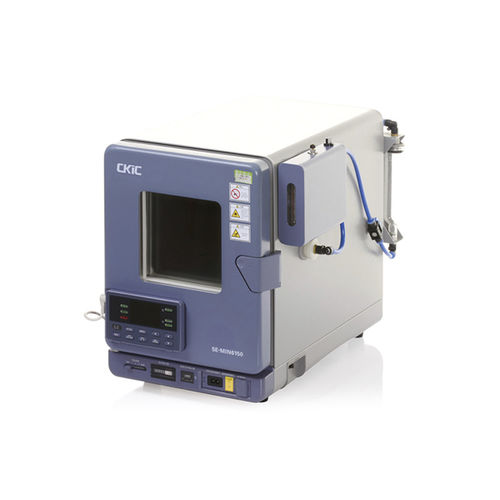

5E-MIN6150 Mini Moisture Oven is used to determine the moisture in coal, coke, heavy oil, biomass and other liquid and solid substance, which is widely applied in power plants, coal industry, metallurgical, petrochemical, cement plants, research institutes and inspection company.

AS 1038.1, ASTM D3302/D3302M/D7582/E871, UNI CEN/TS 15414, BS EN ISO18134, ISO589, GB/T 211, GB/T 212, GB/T 28731, GB/T 28733, GB/T 30732

1. Easy Operation
1) Mini instrument with compact structure.
2) Dual function: Air introduction and Nitrogen introduction are available for choice.
3) Automatic work time can be set within 100 hours for unattended operation.
4) Equipped with stainless heating tube, stainless chamber and automatic ventilation port.

2. High Efficiency
High temperature control precision, quick heating speed and good thermal insulation performance.

3. High Safety
Equipped with intelligent control system, electric leakage protection and over temperature protection device.

4. Cost Saving
Small chamber could save the nitrogen gas and keep the balanced temperature.

Internal Capacity: 15L
Exchange Frequency: 15 times per hour
Constant Temp.Range: 20℃ above the ambient Temp-200℃
Temp.Fluctuation: ±0.3℃
Full Load Electric Current: 4.5A
