Hammer crusher / stationary / coal
5E-HCA400×260 |≤150mm |Humid Coal CKIC / Changsha Kaiyuan Instruments Co., Ltd

Characteristics

  • Technology:

    hammer

  • Mobility:

    stationary

  • Other characteristics:

    coal

  • Capacity:

    1800 kg/h (3968.32 lb/h)

Description

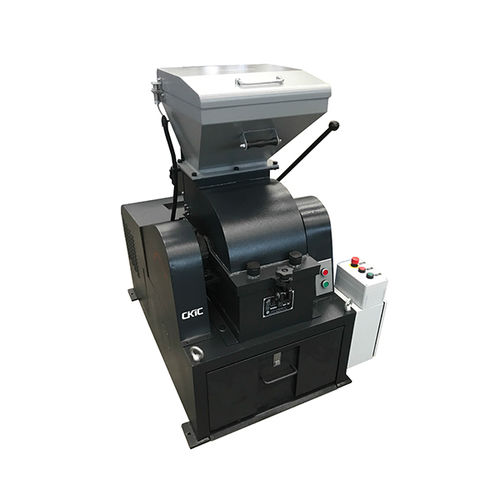

5E-HCA400×260 Humid Coal Hammer Crusher is especially designed to crush humid coal.

Features:
1. Design of vibrating sieve plate structure leads to high moisture adaptability and less moisture loss to avoid blocking.

2. Hermetic structure improving the operation environment and easy for cleaning.

3. Equipped with 13mm and 6mm sieve plate, the discharge size is even and good.

4. Good safety with the transmission protection design.

5. Durable materials for hammer decrease the maintenance cost.

Specification:
Feed Size: ≤150mm
Discharge Size: ≤6mm / ≤13mm (Customized sieve hole size available)
Moisture Adaptability: ≤20%
Approx. Hardness of Feeding Sample: HRC45-52
Throughput: 1800kg/h
Noise: ≤95dB
Net Weight: 350kg
Dimensions(L×W×H): 730mmx1120mmx1200mm
