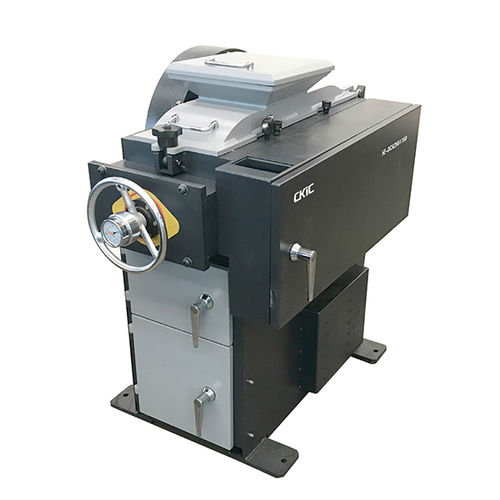

Double-roller crusher / stationary / coal
5E-DCA250x150 |Φ250×150mm |HRC60-65 CKIC / Changsha Kaiyuan Instruments Co., Ltd

Characteristics

  • Technology:

    double-roller

  • Mobility:

    stationary

  • Other characteristics:

    coal

  • Capacity:

    Min.: 300 kg/h (661.39 lb/h)

    Max.: 400 kg/h (881.85 lb/h)

Description

5E-DCA250×150 Double Roller Crusher is used to crush medium hard material, which is widely used for the sample preparation in coal mines, power plants, metallurgy, geology, chemical industry and scientific research.

Features:
1. Easy to operate, available to adjust discharge size by single-hand wheel.

2. Visible dial gauge ensures the precision of particle size.

3. Disassemble side guard with purge function, convenient to clean.

4. Hermetic structure improving the operation environment and reducing sample contamination.

5. Durable material for roller to decrease the maintenance costs.

Specification:
Roller Dimension: Φ250×150mm
Feed Size: ≤13mm
Discharge Size: ≤10-0.5mm (Adjustable)
Approx. Hardness of Feeding Sample: HRC60-65
Throughput: 300~400kg/h
Noise: <82dB
Net Weight: 365kg
Dimensions(L×W×H): 930mm×585mm×885mm
