Sample divider / vertical / coal powder
5E MR1/8|5E-MRA1/8|≤12% CKIC / Changsha Kaiyuan Instruments Co., Ltd

Characteristics

  • Type:

    sample

  • Other characteristics:

    vertical

  • Product applications:

    coal powder

Description

5E Series Sample Divider is the updated motive division apparatus after simulating manual division. It is suitable for sample division in coal mine, iron ore, metallurgical coke and chemical industry.

Models Available:
5E-MR1/8 Sample Divider

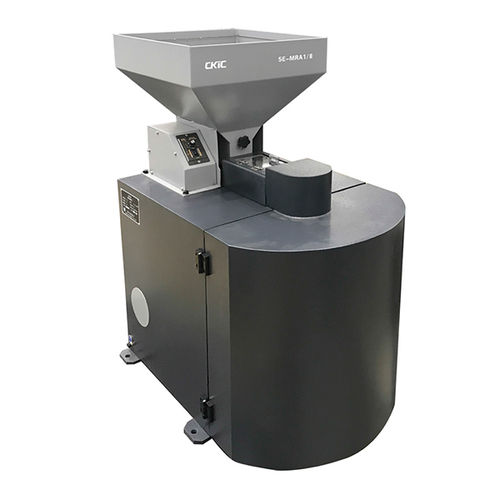

5E-MRA1/8 Rotary Sample Divider

Features:
5E-MR1/8 Sample Divider
1. Dust free due to complete sealed design.
2. Easy to clean and no sample mixing.
3. Patent technology, easy to adjust the division ratio.

5E-MRA1/8 Rotary Sample Divider
1. Vibrating feeder to ensure the feed material even.
2. Rotary speed & feed location is adjustable.
3. Compact structure and easy to install and uninstall of the receiving buckets.

Specification:
Feed size: ≤13mm 3-13mm
Dividing Ratio: 1/2,1/4,1/8 (Adjustable)
A(Default Option): 4 buckets (1x1/2,1x1/4,2x1/8) B: 6 buckets (2x1/4,4x1/8)
C: 8 buckets (8x1/8)
Throughtput: 800-1200kg/h Max.350kg/h
Moisture adaptability: ≤12%
Noise: ≤40dB ≤80dB
Net Weight: 95kg 130kg
Dimensions(L×W×H): 656mmx767mmx746mm 860mmx500mmx1010mm
