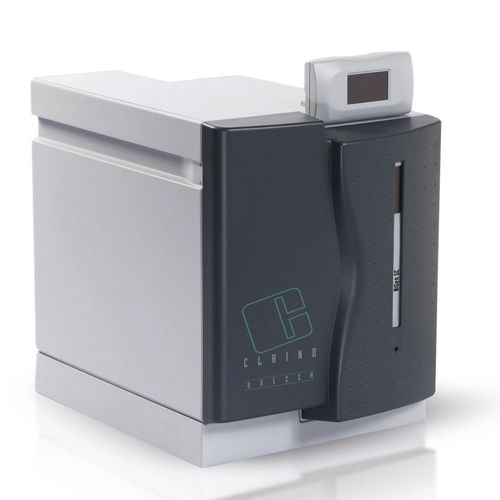

Ultra high-purity nitrogen generator NiGen GC/HC

laboratoryfor gas chromatographyPSA

Designed for GC GAS TYPE nitrogen PURITY > 99,9995 % CONFIGURATION tower - Available in basic and HC version so the hydrocarbons can be completely removed using the Pt/Pd catalyzerCapable of distributing 500Nml/min with > 99.9995% purity - Ready to be connected to the dedicated AirComp compressor - CPU with Touch Screen Display, which can be linked to the generators with CAN-BUS, allows monitoring of the operating status and menu reading with the maintenance status, the alarm report and functional parameters - Capable of supporting up to 12 make up FID/ NPD, up to 7 ECD or 5 S/S - Parallel connection up to 4 stackable tower configuration generators FLOW RATE - 500 Nml/min ± 10% a 2000 m asl TECHNOLOGY - PSA CLAIND OUTPUT PRESSURE - 0 - 6 bar/0 - 87 psi ± 3% PURITY - > 99,9995 % MOISTURE - < -50 °C dew-point ATP ± 2°C ATP AIR INPUT CHARACTERISTICS - Particulate ≤ 0,01 mm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point ATP min pressure: 8 bar Air flow rate: 6 Nl/min ELECTRICAL SUPPLY x NiGen GC - 115/230 Vac ±10% 60-50 Hz 50 w ELECTRICAL SUPPLY x NiGen GC HC - 115 Vac ±10% 60 Hz 200 W 230 Vac ±10% 50 Hz 200 W INDEX OF PROTECTION - IP20 NOISE - < 50 dBA for the 98% of operation time < 60 dBA for 2 sec. each cycle OPERATING TEMPERATURE - 5°C - 40°C/40°F - 100°F ENVIRONMENTAL HUMIDITY - max 90% without condensation MAX ALTITUDE - 2000 m asl DIMENSIONS - Height: 40 cm + 7 cm/15.8” + 2.8” Width: 38 cm/14.9” Depth: 53 cm/20.8”
