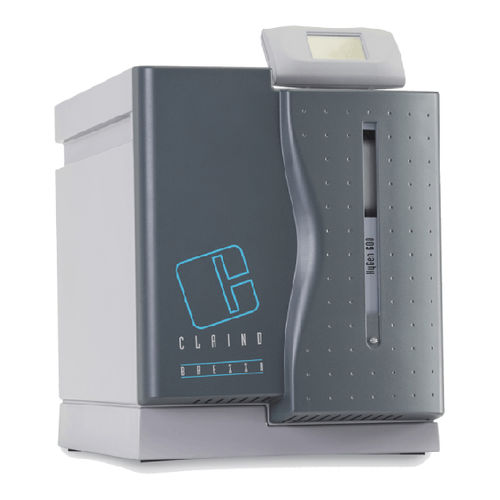

Ultra high-purity hydrogen gas generator H SERIES
laboratoryfor gas chromatographyelectrolytic membrane

ultra high-purity hydrogen gas generator
ultra high-purity hydrogen gas generator
ultra high-purity hydrogen gas generator
Add to favorites
Compare this product


Characteristics

Gas characteristics
ultra high-purity
Domain
laboratory
Applications
for gas chromatography
Technology
electrolytic membrane, PEM
Flow rate

200 l/min, 400 l/min, 600 l/min
(52.834 us gal/min, 105.669 us gal/min, 158.503 us gal/min)

Output pressure

Min.: 2 bar
(29.01 psi)

Max.: 8 bar
(116.03 psi)

Gas purity

99.9999 %

Rated capacity

110 W, 180 W, 250 W
(0.1 hp, 0.2 hp, 0.3 hp)

Description

Designed for Carrier Gas GAS TYPE hydrogen PURITY 99,9999 % CONFIGURATION tower - Available in three models for 200-400-600 Nml/min flows with > 99.9999% purity a Designed for Carrier Gas in GC, GC-MSD and “FAST GC” - Automatic switch with inert gas available in case of production stoppage - Maintenance: low cost consumables with easy replacement - Parallel connection up to 4 stackable tower configuration generators - Safety system with acoustic alarms, screen messages and automatic production stoppage in case of gas leaks - Removable water tank for easy cleaning and water change - Hydrogen production in proportion to consumption, with minimum gas storage inside the instrument - CPU with Touch Screen Display that can be linked to the generators with CAN-BUS, allowing monitoring of the operating status and menu reading with the maintenance status, the alarm report and functional parameters FLOW RATE - 200/400/600 Nml/min ± 10% a 2000 m slm (possibility to connect in parallel up to 4 stacked generators) TECHNOLOGIES EMPLOY - HT PEM electrolytic cell OUTPUT PRESSURE - 2 - 8 bar ± 3% /30 - 116 psi ± 3% PURITY - 99,9999 % Oxygen 1 MΩ cm @25°C; ASTM Type II Advised resistivity >10 MΩ cm @25°C; ASTM Type I ELECTRICAL SUPPLY - 115/230 VAC (+/– 10%) 50-60 Hz H200: 110W H400: 180W H600: 250W INDEX OF PROTECTION - IP20 NOISE - < 50 dBA OPERATING TEMPERATURE - 5°C - 35°C / 40°F - 95°F ENVIRONMENTAL HUMIDITY - max 90% without condensation MAX ALTITUDE - 2000 m slm
