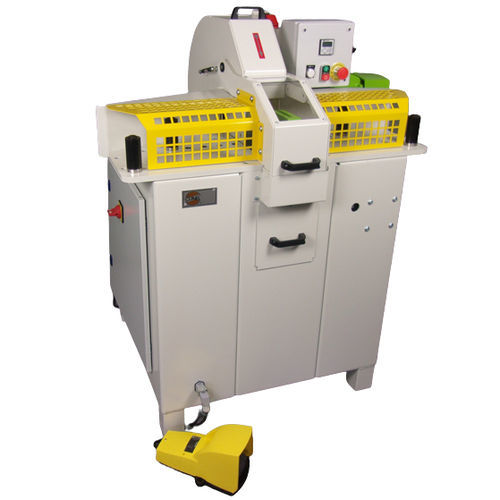

Rotary blade cutting machine P15for rubberfor hosesmanually-controlled
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Material
- for rubber
- Product handled
- for hoses
- Control type
- manually-controlled
- Applications
- for industrial applications
- Other characteristics
- pneumatic
- Tube diameter
125 mm
(5 in)- Overall length
100 mm
(4 in)- Overall width
1,160 mm
(46 in)- Height
1,300 mm
(51 in)- Weight
425 kg
(936.96 lb)
Description
for cutting high pressure hoses up to 2” 6 Steel layers
Technical specifications
• Floor mounted production model
• Pedal-operated electrical control
• Advance cylinder for cutting head
• 13Kw – 400V TRI – 50Hz – three phases motor – hight torque
• Automatic star delta starter, circuit breaker protected
• OPTION: Lengh end stop / special voltage / lubrification
• Cutting head feed is controlled by a secure hydraulic regulator smooth cutting
• Connection nozzle with aspiration system (without vacuum cleaner)
• Cut counter with digital display
• Serrated cutting blade: Ø520 x 40 x 4mm
