Spray Type Deaerator
7,000-280,000 lbs/hr capacities
On/off and variable speed pumping
Low headroom design

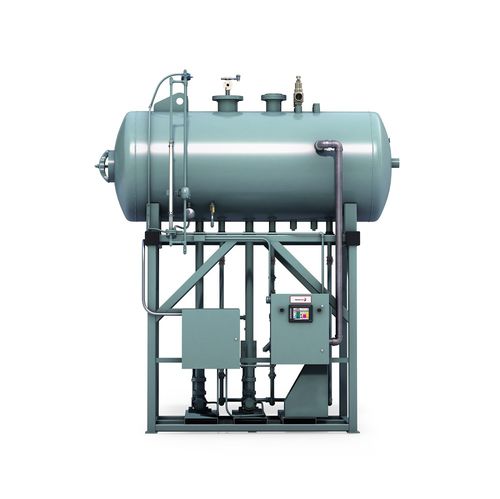

The Cleaver-Brooks designed SprayMaster deaerator is a proven design that assures high purity feedwater by removing oxygen and other dissolved gases in boiler feed and maintaining consistent temperature feedwater to your steam boiler.
Two-stage deaeration ensures maximum oxygen removal
Internal stainless steel vent condenser
Self-cleaning water spray valve
Stainless steel deaeration assembly
Packaged units for cost effective installation
On/off or variable speed pumping
Storage capacities from 10 to 30 minutes
The spray system in the Cleaver-Brooks SprayMaster deaerator is built of corrosion-resistant alloys for long life service. The deaerator employs those basic principles of gas removal proven most effective and economical to every steam boiler owner. With capacities ranging from 7,000 to 280,000 lbs/hr, the SprayMaster can be used in a wide range of steam plants. All of Cleaver-Brooks deaerators can be equipped with a wide range of options from basic manual controls up through full advanced digital operation depending on the needs of the system. Equip your deaerator with the ADAC control system to provide the most advanced operation of your feed systems.
