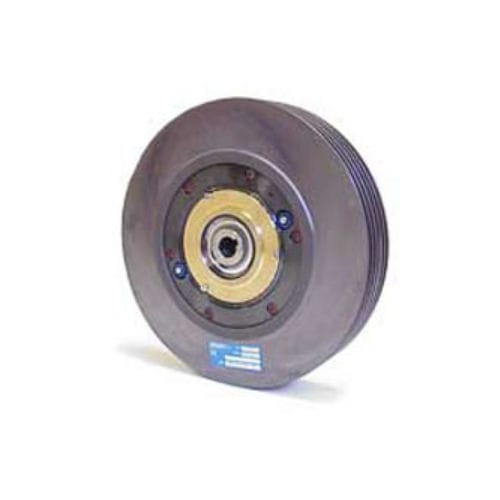

Powder clutch and brake EMAG series
electromagnetic

powder clutch and brake
powder clutch and brake
powder clutch and brake
Add to favorites
Compare this product


Characteristics

Type
powder
Operation
electromagnetic
Torque

Min.: 1.5 ft.lb

Max.: 260 ft.lb

Description

Better torque control - Torque is proportional to the supplied current. EMAG 1 - (1.5 lb. ft.) EMAG 4 - (4 lb. ft.) EMAG 9 - (9 lb. ft.) EMAG 26 - (26 lb. ft.) EMAG 50 - (50 lb. ft.) EMAG 90 - (90 lb. ft.) EMAG 150 - (150 lb. ft.) EMAG 260 - (260 lb. ft.) Features • Wider torque range - 100 to 1 torque range. • Wider Speed Range - Torque is independent of rotational speed. • Lower Power Consumption - Recommended Power Supply rated at 2 amps max at 24 VDC. • Typical current of 1 amp or less required. • Noiseless - Electromagnetics eliminates the annoying squeal that can occur with friction brake pads. • Dustless - Excellent for use in medical and clean environments. • Electromagnetics eliminates the dust create by friction brake pads. • Lower Maintenance - No brake pads to replace. • Lifetime lubrication. • Faster Response Time - Response of electric current is much faster than the movement of compressed air in • the pneumatic brake line.
