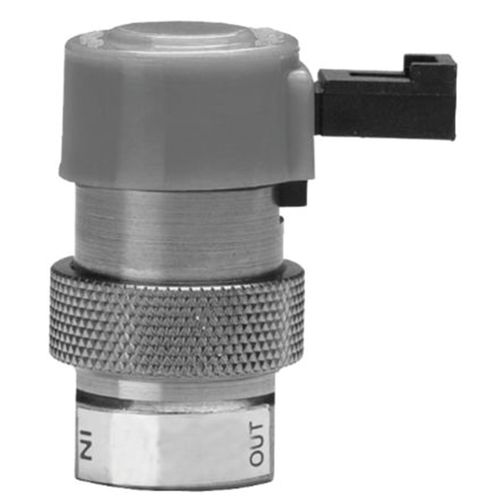

direct-operated solenoid valve / 3-way / NC / air
EC-3 series Clippard

{{requestButtons}}

Characteristics

  • Control:

    direct-operated

  • Ports/positions:

    3-way

  • Function:

    NC

  • Medium:

    air

  • Body:

    in-line, nickel-plated brass

  • Other characteristics:

    plug

  • Temperature:

    Min.: 0 °C (32 °F)

    Max.: 82 °C (180 °F)

  • Pressure:

    Min.: 0 psi

    Max.: 105 psi

  • DN:

    0.025 in

  • Voltage:

    6 V, 12 V, 24 V

Description

3-Way Elec. Valve, N-C, In-Line Mount, Pin Connector, 12 VDC

Additional Information
Air Flow 0.6 scfm @ 100 psig (17 L/min @ 7 bar)
Air Flow 0.6 scfm @ 100 PSI
Body Material Nickel Plated Brass
Connection Type 0.25" Square Pin Connector
Connector Terminal
Connector P/N C2-RB18
Life Cycles Over 1 Billion
Max PSI 0 - 105 PSI
Medium Air, Gas
Mount Standard In-Line Mount
Mounting #6-32 thd. Mounting Holes
Orifice 0.025"
Poppet Travel 0.007"
Port Size #10-32
Ports 10-32 Thread
Power Consumption .67 Watts
Power Consumption 0.67 Watts
Pressure Range 28" Hg Vac. to 105 psig
Response Time 5-10 Milliseconds @105 PSI
Response Time 5 to 10 milliseconds (nominal)
Seals Nitrile
Series Standard
Temperature Range 30 - 180 F
Temperature Range 32 to 180°F (0 to 82°C)
Valve Porting 3-Way Normally-Closed
Voltage 12 VDC
