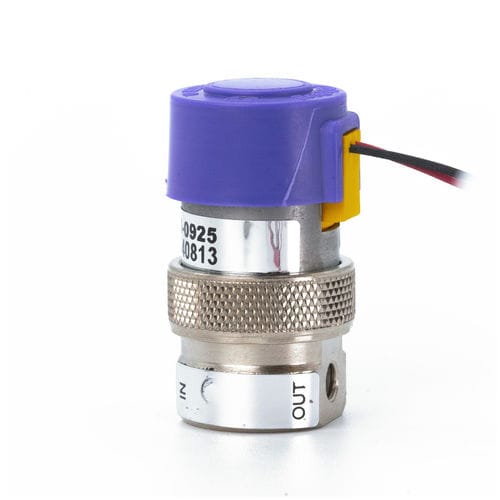

Proportional solenoid valve EVP series

direct-operated2-wayair

EVP Proportional Valve, 0 - 5 VDC, 0.013 Orifice, 100 psig Notes Selection Tips: How to Select Your EVP Proportional Valve Additional Information Air Flow - 6.7 SLPM +/- 10% @ 100 PSI Body Material - Nickel Plated Brass Coil Resistance - 13.5 Ω @ 73°F Connection Type - 18" Wire Leads Side (Radial) Construction - EVP_Proportional_Valve_Data_Sheet.pdf Input Current Range - 0 to 0.370 A Max Voltage Required - 6.2 VDC Maximum Hysteresis - 10% of full current Medium - Clean, dry air (40 micron filter) Mount - Standard In-Line Mount Mounting - #6-32 thd. Mounting Holes Orifice - 0.013" Orifice Poppet Travel - 0.007" Port Size - #10-32 Ports - ENG Female (In-Line) Power Consumption - 1.9 watts at 73°F (23°C), 2.4 watts max Pressure Range - -5 to 100 psig Seals - Nitrile Temperature Range - 32 to 120°F (0 to 49°C) Type - 2-way, proportional Voltage - 5 VDC Wire Size - 26 Gauge
