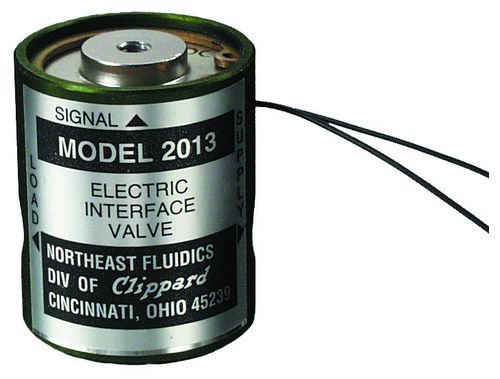

pilot-operated solenoid valve / 3-way / NC / NO
2013-6 Clippard

{{requestButtons}}

Characteristics

  • Control:

    pilot-operated

  • Ports/positions:

    3-way

  • Function:

    NC, NO

  • Medium:

    air

  • Body:

    anodized aluminum

  • Other characteristics:

    diaphragm, low-pressure

  • Pressure:

    Max.: 100 psi

    Min.: 30 psi

Description

Medium: Air
Material: Anodized aluminum body,
Nitrile diaphragms
Input Pressure: 30 to 100 psig max.
Air Flow: 22 scfm @ 100 psig
Bleed: 0.1 scfm @ 100 psig
Filtration: 10 micron
Frequency Response: 50 Hz @ 100 psig
70 Hz @ 30 psig
Switching Speed: 10 milliseconds
Leads: 28 gauge stranded PVC insulated
Continuous Overload: 350% @ 25°C
ambient; 250% @ 50°C ambient
Power Consumption: less than 0.50 watts
at rated voltage 80 ma. @ 6V
40 ma. @ 12V
20 ma. @ 24V
