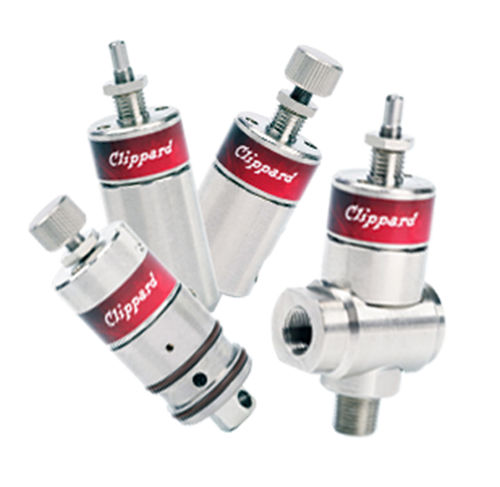

Precision pressure regulator M-DR-2
for airfor waterfor gas

precision pressure regulator
precision pressure regulator
precision pressure regulator
precision pressure regulator
Add to favorites
Compare this product


Characteristics

Product
for water, for gas, for air, for fuel
Technology
diaphragm
Number of stages
single-stage
Applications
precision
Other characteristics
high-precision, miniature, rugged
Pressure

Max.: 7 bar
(101.53 psi)

Min.: 0.1 bar
(1.45 psi)

Temperature

Max.: 110 °C
(230 °F)

Min.: 0 °C
(32 °F)

Description

Clippard M-DR-2 Precision Diaphragm Regulators: When Clippard invented miniature regulators in 1962, the MAR Series became very popular as a simple, robust, and cost-effective regulator in a small package with exceptionally long life. As regulator applications continue to increase, Clippard is meeting the demand with the newest addition to the reputable regulator line. The new M-DR-2 Series provides greater accuracy and repeatability (±7 mbar) while maintaining the same flow and performance characteristics as the MAR regulators in a small, sleek package. Regulators are offered in either relieving or non-relieving versions. The relieving design maintains a constant pressure output even when downstream conditions change, while non-relieving regulators do not automatically compensate for changes in downstream flow or pressure. There is no vent to atmosphere, as in a relieving type regulator, and the output pressure can increase due to a downstream event. • Design for applications where zero air consumption is required (non-bleed) • Special diaphragm seal provides excellent accuracy and repeatability • Excellent corrosion resistance • Relieving and non-relieving designs • Manifold mount option • Features non-rising internal adjustment • ISO 9001:2008 For more information about these regulators or any of Clippard’s 5,000 other pneumatic products, call +32.10.45.21.34 or visit www.clippard.com. Clippard Europe S.A. Louvain-la-Neuve (BELGIUM) +32.10.45.21.34 www.clippard.com
