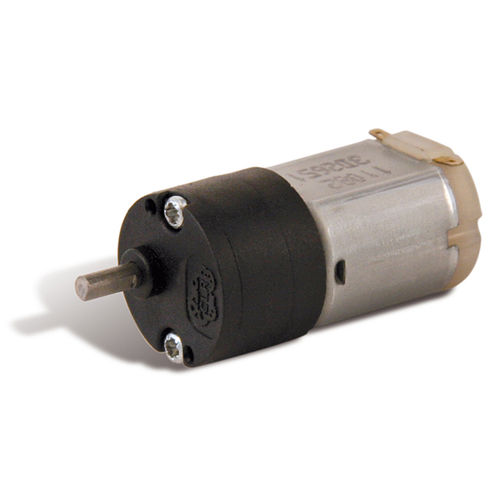

DC gearmotor / parallel-shaft / spur / compact
14 rpm - 945 rpm, 4.5 V - 12 V CLR

Characteristics

  • Motor type:

    DC

  • Shaft orientation:

    parallel-shaft

  • Type:

    spur

  • Other characteristics:

    compact, low-voltage, micro

  • Product applications:

    industrial, for conveyor systems, for food industry machinery

  • Torque:

    Min.: 0.0017 Nm (0 ft.lb)

    Max.: 0.1275 Nm (0.09 ft.lb)

Description

Spur gear
Steel output shaft
Output shaft bearing: PA 6 GF 30
Max. permissible radial load, 5 mm from flange: 12 N
Max. permissible axial load: 5 N
Gear material: POM
Max. operating torque: 0,1 N · m
Gear shafts: hardened and ground steel
PA 6 + GF 30 housing


REMARK: Output shaft can be modified according to customer requirements only if it is technically possible. Minimum order quantity special output shafts: 500 pcs
