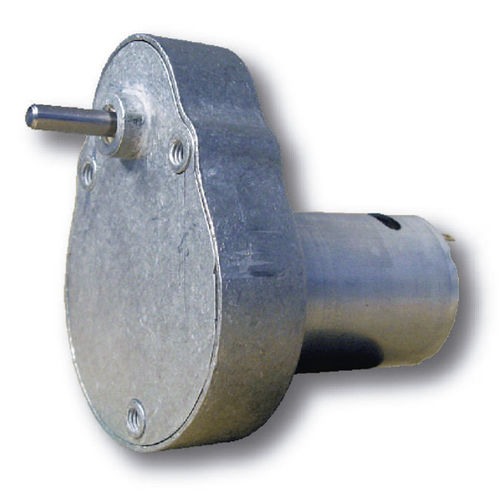

DC gearmotor / parallel-shaft / gear train / compact
2 rpm - 458 rpm, 1,5 V - 24 V CLR

Characteristics

  • Motor type:

    DC

  • Shaft orientation:

    parallel-shaft

  • Type:

    gear train

  • Other characteristics:

    compact, low-voltage, shaft-mounted

  • Product applications:

    industrial, for food industry machinery, for conveyor systems, for the paper industry, hygienic

  • Torque:

    Min.: 0.0003 Nm (0 ft.lb)

    Max.: 0.83 Nm (0.61 ft.lb)

Description

Spur gear
Steel output shaft
Output shaft self-lubricating bearing
Max. permissible radial load, 5 mm from flange: 10 N
Max. permissible axial load: 20 N
Gear material: Pom.
Gear shafts: hardened and ground steel
Zamak housing
Max. operating torque 0,5 N•m.
