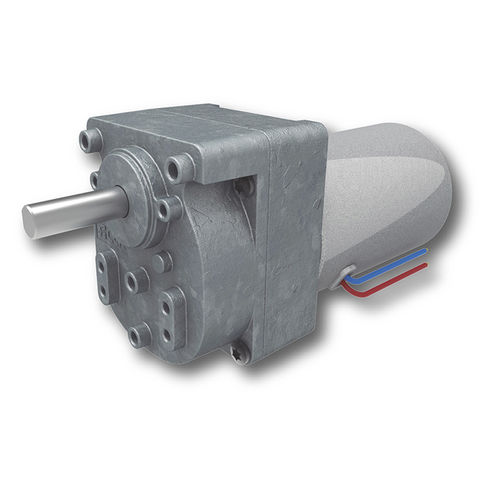

DC gear-motor / parallel-shaft / spur / helical
022342 CLR

{{requestButtons}}

Characteristics

  • Motor type:

    DC

  • Shaft orientation:

    parallel-shaft

  • Type:

    spur, helical

  • Product applications:

    industrial

  • Torque:

    5 - 10 Nm

  • Torque:

    8 Nm (5.9005 ft.lb)

Description

This gearbox model is defined by the use of gears combining the best of spur and helical gears so that getting an improvement between them.
Spur-helicoidal gear.
Steel output shaft.
Output shaft self-lubricating bearing.
Max. permissible radial load, 15 mm from flange: 500 N
Max. permissible axial load: 300 N
Gear material: Steel.
Zamak housing.
Max. operating torque 8 N·m
Anchoring with external fixing points.
