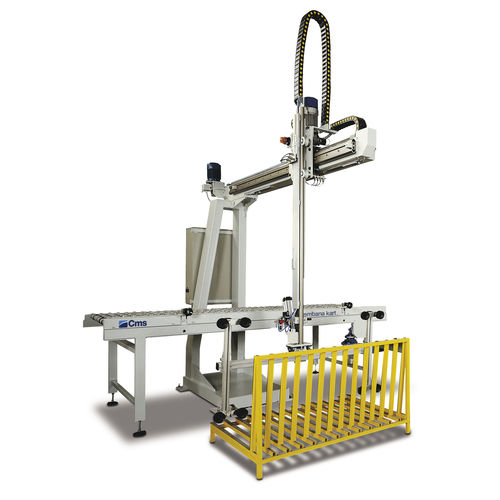

Electric manipulator kart
with suction cuploadinghandling

electric manipulator
electric manipulator
electric manipulator
electric manipulator
electric manipulator
electric manipulator
electric manipulator
Add to favorites
Compare this product


Characteristics

Drive type
electric
Gripping device
with suction cup
Applications
loading, handling, unloading, for glazing, for plates, glass
Domain
automatic
Carrying capacity

100 kg, 330 kg, 441 kg, 882 kg
(220.5 lb, 727.5 lb, 972.2 lb, 1,944.5 lb)

Description

CMS Glass Technology offers a wide range of Kart model loaders/unloaders for the automatic handling of glass sheets. All such systems are easily integrated into any straight line edger (vertical or horizontal), machining centers and double edge machines. They enable the operator to carry out loading/unloading operations in complete safety, minimizing all risks of breakage and increasing productivity. • - the movements (approach, pick-up, lifting, tilting, release, etc.) are managed by a CMS designed PLC • - the (optional) brushless motors make movements smoother and faster • - they can be easily integrated into other manufacturers’ plants SUPERIOR PERFORMANCE Thanks to the movement with rack and pinion it's possible to handle glass sheets up to 400Kg or reach cycle times of less than 15 seconds. ANTI-SCRATCH SYSTEM The device that interposes strips of paper between one glass and another. In this way, the glasses are not scratched and are ready to be sent directly to the final customer. MULTI PALLET MANAGEMENT Thanks to the movement of the wrist controlled by a brushless motor, specific recipes can be set for each type of pallet. With a variable angle of 90 ° with automatic adjustment, the pallet changing time is zero
