Oscillating indexer / rotary / intermittent / globoidal cam
rotary, oscillating, intermittent
for heavy loads

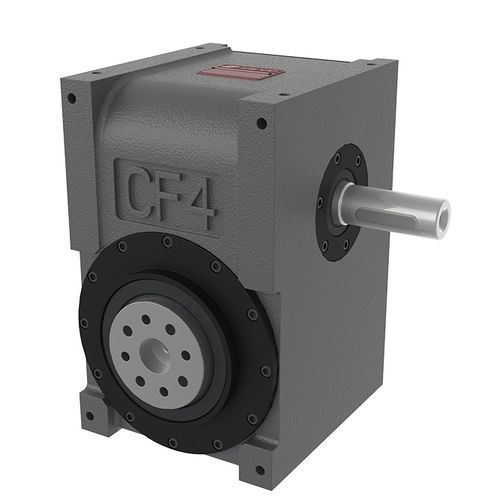

The CF4 Index and Oscillating Drives are globoidal cam mechanisms that transform a uniform rotary input motion into a smooth indexing or oscillating output motion. CF4 Index Drives in the versions with standard power drive are fitted with suitably selected worm screw reduction gears witch are keyed directly into the input shaft. These reduction gears are supplied with a built-in clutch, so that in case of accidental or emergency stops, overloads caused by dynamic impact are avoided by clutch operation.
