Electrical network analyzer FFT-01 UPM

communication networkharmonicportable

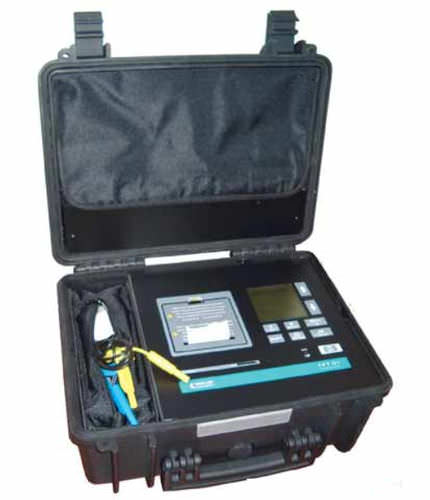

FFT-01 is a portable three-phase analyzer and is capable to measure all the electrical network parameters. It is equipped with graphic display featuring an effective menu layout that makes easy performing measurements. It’s also supplied with a built-in 40-column printer which provides an excellent autonomy for measuring values “on the field”. Moreover, all data can be stored on the internal RAM in order to transfer them to a Personal Computer through the included FFTLINK software (WINDOWS environment). Data are available in compliance with all the major electronic spread-sheet formats (LOTUS 1-2-3, EXEL, SYMPHONY etc.). Standard memory size is 512kbytes and it can be expanded up to 2Mbytes. FFT-01 is a totally configurable analyzer and is able to capture measurement on single-phase, two-phase or threephase networks. The analyzer is provided in a ABS case (protection degree: IP 65) where current clamps and other measuring accessories are located too. It is equipped with an RS232 serial port for connection to Personal Computer to achieve numeric or graphic visualization of measured values instantaneously. FFT-01 can perform FFT analysis of the network up to the 50th harmonic: it can be used to verify electrical energy quality periodically and to locate disturbance sources in a network
