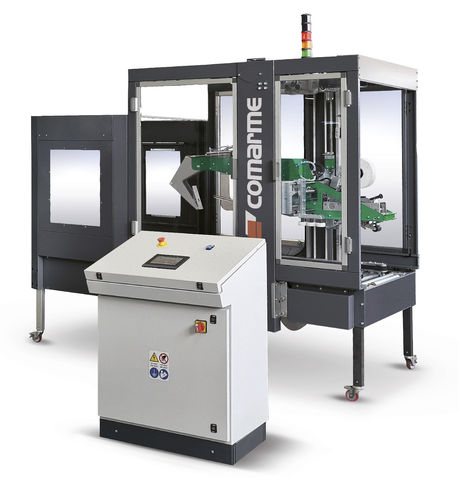

Multi-flap case sealer GEM XF520 BM -XF670 BM

adhesive tapeautomatic

GEM XF520BM / GEM XF670BM - Automatic top flaps closing device - Box size adjustment automatically in length, width and height - Box height adjustment by Brushless motor (fig. 1) - Box size adjustment in width: pneumatically - Box height detection, to be defined : with a tester (fig. 2), DCM application (fig. 3-4), box menu, either other on demand, for the top sealing unit positioning - Lateral side drive belts H50mm - Drive belts speed adjustable based on the box quality and speed - Pneumatic pressing side rollers - Top & bottom taping heads Comarme (fig. 6) for automatic sealing - Top break and tape end device (for tape roll end, tape break or missed cut) - Electric cabinet with Siemens PLC S7 1200 model - Kite colour panel touch screen P07 model, 7” - Safety protections as per CE safety norms In-line machine can be combined to the automatic centering device DAC (fig. 5) either centering & box measuring device DCM (fig. 3-4)
