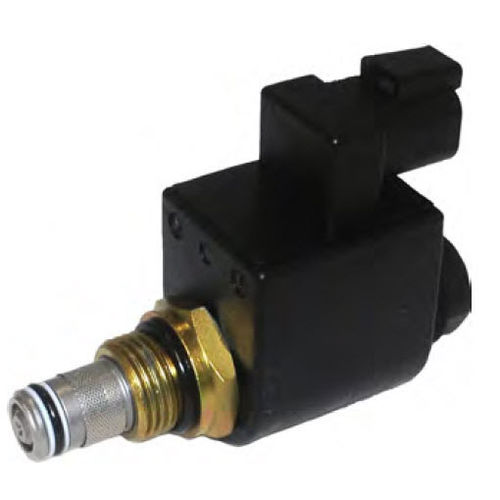

Pilot-operated solenoid valve EVK 06/C5
2-waynormally closedhydraulic

pilot-operated solenoid valve
pilot-operated solenoid valve
Add to favorites
Compare this product


Characteristics

Control
pilot-operated
Ports/positions
2-way
Function
normally closed
Medium
hydraulic
Body
double
Other characteristics
standard, control, plug
Pressure

230 bar
(3,335.9 psi)

Description

This is a normally-closed, double-blocking poppet-type, 2 position, Metric NCS 06-size solenoid valve. When de-energized, the EVK 06/C5 blocks flow in both directions. When energized, the valve’s poppet lifts and allows flow from port 2 to port 1, and from port 1 to port 2. This valve comes standard with a push-pin type manual override. Applications The EVK 06/C5 is designed for circuits requiring very low leakage can be used to control the advance and retract of single acting and double acting cylinders. The double blocking state can be used to lock pressure in a group of cylinders.
