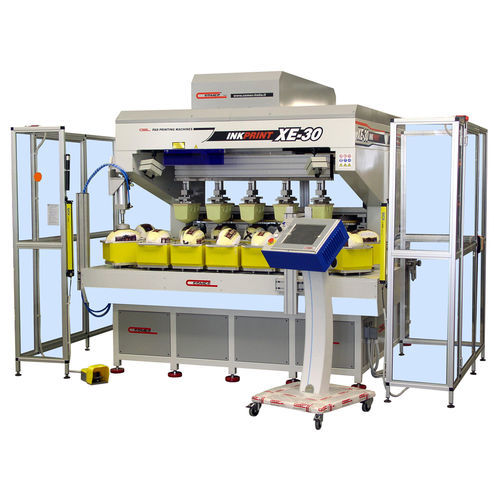

Pad printing machine with hermetic ink cup INKPRINT XE30 5C
automatic5-colorelectropneumatic

pad printing machine with hermetic ink cup
pad printing machine with hermetic ink cup
Add to favorites
Compare this product


Characteristics

Type
with hermetic ink cup
Control
automatic
Number of colors
5-color
Other characteristics
electropneumatic, with touchscreen
Printing force

25,000 N

Description

Precision, personality, reliability: these are the requirements of the XE30, a pad printing machine with electronically controlled axes for printing up to 8 colors, on large objects. It is equipped with hermetic inkcups and ceramic rings of varying size depending on the number of colors (example: 8 colors 130 mm diameter inkcup, 4 colors 250 mm diameter inkcup), enclosed in a sturdy steel and aluminum frame. Thanks to a PC with touch screen interface you can manage, through an intuitive and fast program, all machine movements, including movements of the axes, equipped with brushless motors that ensure speed and accuracy in printing. Also the workpiece holder shelf is motorized, for a simple and versatile management of the different works to be carried out. XE30 is arranged, as all the machines designed and built by Comec Italia, to be completed by a series of optional devices: automatic and programmable pad cleaning device, pre-treatment system with gas flaming or corona device, automatic devices for loading and unloading of the pieces, hot air on the pads (Hot Wind 200), linear feeder or step feeder. In addition, it is equipped with safety protections of aluminum and plexiglass with cross-infrared rays barrier, according to the current regulations.
