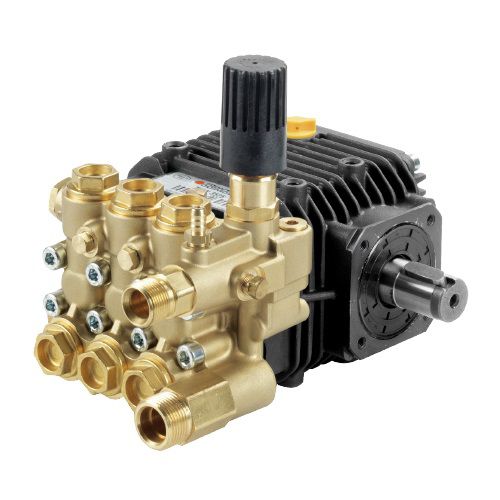

Water pump ZW-K seriesoilwith electric motorplunger
Add to favorites
Compare this product
Characteristics
- Fluid
- water, oil
- Operation
- with electric motor
- Technology
- plunger
- Mobility
- stationary
- Domain
- industrial
- Applications
- lubrication, unloader
- Material
- stainless steel, ceramic, bronze, brass, cast aluminum
- Other characteristics
- lubricated, built-in, corrosion-resistant, reinforced, belt drive, triplex
- Flow
13.4 l/min, 15 l/min
(3.53991 us gal/min, 3.96258 us gal/min)- Pressure
152 bar, 172 bar, 207 bar
(2,204.574 psi, 2,494.649 psi, 3,002.281 psi)- Power
4 kW, 4.8 kW, 5.5 kW
(5.44 hp, 6.53 hp, 7.48 hp)- Length
251 mm
(10 in)- Width
196 mm
(7.72 in)- Height
172 mm
(6.77 in)- Weight
7.2 kg
(15.87 lb)
Description
Brass Head
Built-in Unloader Valve
Increased Fin Depth Increases Surface Area to Maximize Heat Dissipation
Stainless Steel Unitized Check Valves
Heat-Resistant Solid Ceramic Plungers Operating on Lubricated Packings
Reinforced Crankcase for Increased Load Capacity
Enlarged Crankcase Increases Oil Capacity for Better Lubrication and Lower Operating Temperatures
One-Piece Industrial-Grade Oversized Bronze Connecting Rods
Solid Shaft 24 mm for Belt Drive, Gearbox or Flex Couplers
