water pump / with electric motor / plunger / industrial
TW series COMET Spa

{{requestButtons}}

Characteristics

  • Media:

    water

  • Operation:

    with electric motor

  • Type:

    plunger

  • Domain:

    industrial

  • Other characteristics:

    triplex, lubricated, corrosion-resistant, mechanically-actuated, cast aluminum

  • Flow:

    Min.: 10.5 l/min (2.7738 us gal/min)

    Max.: 53.5 l/min (14.1332 us gal/min)

  • Pressure:

    Min.: 172 bar (2,494.649 psi)

    Max.: 345 bar (5,003.802 psi)

  • Power:

    Min.: 7.5 kW (10.2 hp)

    Max.: 15.3 kW (20.8 hp)

Description

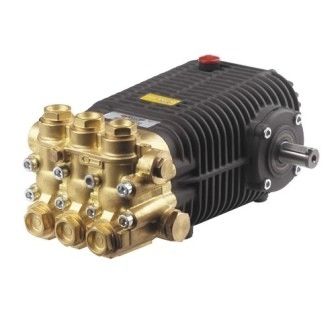

The TW series triplex pumps are equipped with a crankcase out of die cast anodized aluminum, for corrosion protection, encapsulated valve seat with O-rings and anti extrusion (intended for models that handle pressures of 275 bar or 4000 psi and higher), valve caps that push the anti-extrusion reinforced O-rings further into the pump head for high-pressure protection. Additionally they feature stainless steel check valves with highly efficient design, ceramic solid plungers, pump head and crankcase coupling system that provides dust and dirt shielding for the piston area, while allowing the exit water flow (patent pending), new and highly durable self lubricating double packing design that uses buna texile seals and bronze rings, large oil capacity for heat dissipation and lower oil consumption and oil vented dipstick. The crankcase features large fins that provide excellent oil cooling enabling unparalleled heat dissipation.
