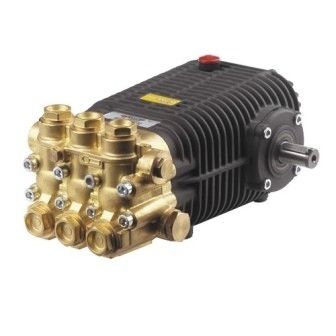

water pump / with electric motor / plunger / industrial
TWS series COMET Spa

{{requestButtons}}

Characteristics

  • Media:

    water

  • Operation:

    with electric motor

  • Type:

    plunger

  • Domain:

    industrial

  • Other characteristics:

    triplex, lubricated, corrosion-resistant, cast aluminum

  • Flow:

    Min.: 20 l/min (5.2834 us gal/min)

    Max.: 50.5 l/min (13.3407 us gal/min)

  • Pressure:

    Min.: 138 bar (2,001.521 psi)

    Max.: 345 bar (5,003.802 psi)

  • Power:

    Min.: 9 kW (12.24 hp)

    Max.: 15 kW (20.39 hp)

Description

This Crankcase of die cast aluminium alloy has been anodized for protection against corrosion. It is encapsulated with valve seat with O-ring and anti extrusion for models with a starting pressure of 275 bar / 4000 p.s.i. The check valves are made of stainless steel with an extremely efficient design. While the ceramic solid plungers exclusive coupling system between the pump head and crankcase prevent dust and dirt from entering the area where the pistons work, water is allowed to exit. A patent on this is pending. This is a new self lubricating double packing design which has special buna texile seals and bronze rings for extended packing life.
