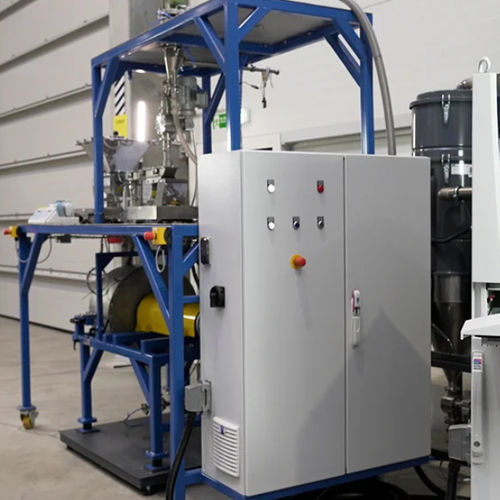

Cyclone grinding system BMX-400
horizontalautomaticcompact

cyclone grinding system
cyclone grinding system
cyclone grinding system
cyclone grinding system
Add to favorites
Compare this product


Characteristics

Technology
cyclone
Orientation
horizontal
Other characteristics
automatic, compact, laboratory, air classifier
Final grain size

Max.: 300 µm

Min.: 3 µm

Motor power

370 W
(0.5 hp)

Description

Dry grinding systems, which include ball mills, are usually very complex and complicated. They require ball mills working in the closed circuit with an air classifier and a complete circuit has to operate with the pneu¬matic transport of the processed material. Such systems often require significant investment in the operating equipment together with an advanced instrumentation, in case any optimization is necessary. In addition, a test work carried out with such grinding circuits is very complex, requires a long grinding time for several hours and consequently demands a lot of input material. Comex has developed a new dry grinding system employing a ball mill working with an air classifier in the closed circuit, for a laboratory use. The equipment is very compact, requires small amount of input material and the control system provides fully automatic test procedures with registration of almost all operating parameters in the PLC. The process capacity is typically in the range of few kg per hour, which provides a significant flexibility regarding a test work with small material portions, different settings and operating parameters. The system can also simulate conditions in large grinding mills by setting a required process temperature up to 150 deg. C. Finally, the particle size distribution can be measured at the outlet by an on-line analyser providing constant control of the produced particles. All parameters are registered and can be exported to XL or other editing program aftertesting.

Catalogs

BMX-400
BMX-400
5 Pages
