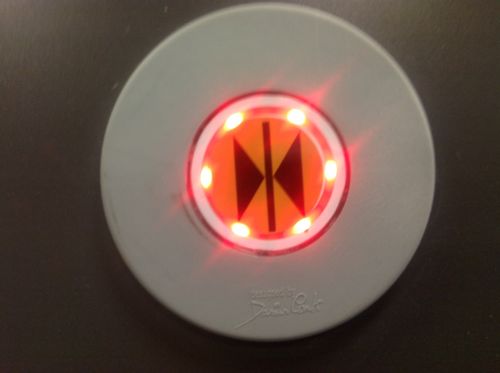

Touch switch KB100BI

single-poleilluminatedelectromechanical

Capacitive technology luminous bicolor touch control button 250 VAC lighting switch in the premises 24 VDC machine control Request for stop/opening for public transport Number of cycles: 100 million at 200 mA Standard activation distance: 0 mm Electrical contact KB100A: 1 RT 1700 VA/250V Electrical contact KB100M: 1 NO, 1 NO+1NF, 8A/250V Electrical contact KB100M: 1 PNP NO, 400mA/24V Selectable features KB100A and KB100M: bistable, monostable, deferred stop (90s timer), delayed start (350ms). Other value on request. Function details: ON/ON = momentary with fraud protection The action is canceled if the finger or organic material is present longer than 5s ON/OFF = bistable. One pulse switches the contacts and another pulse places the contacts at rest ON/duration/OFF = delayed stop 90s "timer" feature (other value on request)
