Screw compressor C series
airdiesel engineportable

screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
diesel engine
Portability
portable
Lubrication
lubricated
Application domain
industrial
Applications
construction
Other characteristics
compact, low-noise, water-cooled, light
Tank volume

60 l
(15.9 gal)

Pressure

7 bar, 10 bar
(101.53 psi, 145.04 psi)

Flow

3.5 m³/min, 3.8 m³/min, 4.2 m³/min, 5 m³/min
(123.6 ft³/min, 134.2 ft³/min, 148.32 ft³/min, 176.57 ft³/min)

Power

35 kW
(47.59 hp)

Length

3,565 mm, 3,910 mm
(140 in, 154 in)

Width

1,490 mm
(59 in)

Height

1,326 mm
(52 in)

Weight

750 kg, 1,025 kg
(1,653.5 lb, 2,259.7 lb)

Noise level

69 dB

Description

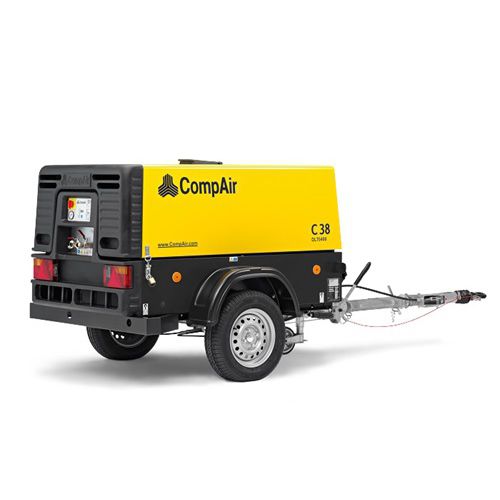

The highly successful CompAir range C35-10 to C50 is driven by exceptionally quiet-running, water-cooled Yanmar 4-cylinder diesel engines. The compressor is particularly suitable for applications in cities and built-up areas, where stringent restrictions are set on noise emissions. The light construction of under 750 kg (C38 and C42 unbraked) makes the compressor suitable for many different applications and is therefore ideal for use by hire companies. These compact and lightweight compressors are available with various chassis options, along with the option of integrated generator or aftercooler or both. Diesel particle filters can be retrofitted to existing models, allowing the use in emission-restricted areas.
