RS232 multi-port serial communication card 30020-5

PCI busRS422/RS485high-performance

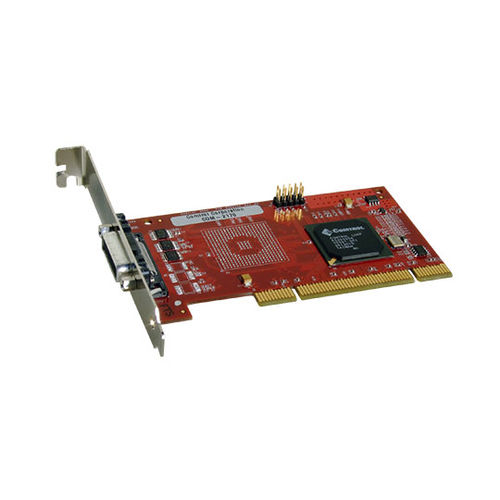

RocketPort ® INFINITY 4/8-PortPCI 8-Port serial card The RocketPort INFINITY 8-Port serial card has communication speeds up to 460Kbps and is RoHS 2 compliantPart Number: 30020-5 32 or 64 Bit 3.3 or 5 volt universal PCI or PCI-X connectivity Low-profile or standard height compatible RS-232, RS-422, RS-485 software-selectable serial ports High performance cards with communication speeds up to 460 Kbps Compatible with 4 and 8 port Interfaces Support for the most popular Windows operating systems (including Windows® 10) and Linux kernels Windows driver, which can be configured for interrupt or polling mode Free troubleshooting tools in the event you want to diagnose an issue: Hardware diagnostics, LCOM (Linux tool for testing serial ports), Pepperl+Fuchs Comtrol Utility, which includes Test Terminal (WCOM2) for serial port testing and Port Monitor for monitoring ports This RocketPort INFINITY card delivers up to 8-ports of additional in-server serial connectivity via a four or eight-port external interface that is purchased separately. The INFINITY design utilizes the Pepperl+Fuchs Comtrol Unity ASIC technology that takes full advantage of the 66 MHz BUS speed available on PCI-X servers. Includes: RocketPort Infinity 4 or 8 Port Card Interface Cable 42" Bracket (1)
