RS232 device server DeviceMaster ® UP

RS422/RS485EthernetDB9M

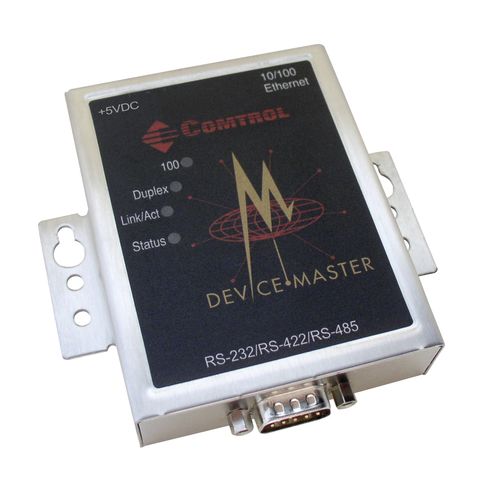

DeviceMaster ® UP 1-Port 5-30VDC1-port panel mount serial device server (RS-232/422/485) with a DB9 connector and a single Ethernet port to support your industrial PROFINET gatewayPart Number: 99441-1 Panel mountable One DB9 male serial port (RS-232/422/485) with a minimum of 15KV of surge protection Variable power input – 5-30VDC One RJ45 Ethernet port Profinet Certification Provide PLC connectivity – to standard PROFINET IO serial devices Wide industrial operating temperature range (-37° to 74°C) PortVision DX – configure network settings for the DeviceMaster and monitor status, update firmware and if necessary, resolve issues remotely Security features – SSL & SSH management, SSL serial data stream encryption The DeviceMaster UP provides connectivity from a wide variety of PROFINET controllers and applications to a vast array of serial and PROFINET raw/ASCII devices. With this gateway, you can connect virtually any PROFINET based PLC, SCADA, HMI, OPC Server or other controller to ASCII interface barcode scanners, RFID readers, printers, encoders, weigh scales, vision systems and many others.
