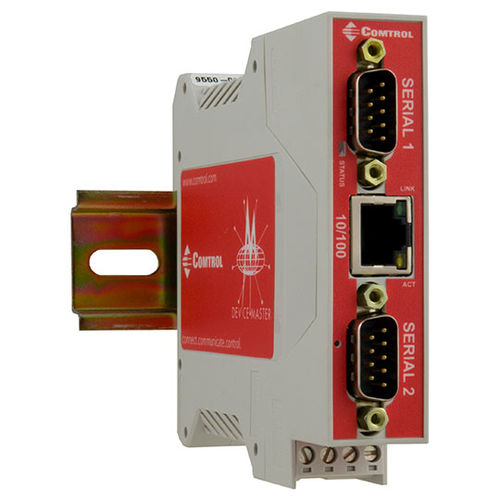

Communication gateway DeviceMaster ® EIP-2102
industrialsecurityEthernet

communication gateway
communication gateway
communication gateway
communication gateway
communication gateway
Add to favorites
Compare this product


Characteristics

Type
communication, industrial, security
Network
Ethernet, RS-232, fieldbus
Other characteristics
DIN rail, 2 port, multi-protocol, serial device server

Description

DeviceMaster ® EIP-21022-port DIN rail serial device server (RS-232/422/485) with two DB9 connectors and a single Ethernet port to support your industrial EtherNet/IP gateway Product Name Change NotificationPart Number: 99551-7 DIN rail mountable Two DB9 male serial ports (RS-232/422/485) with a minimum of 25KV of surge protection Variable power input – 6-30VDC with a screw terminal connector One RJ45 Ethernet port Provide PLC connectivity – to standard EtherNet/IP™ serial devices Wide industrial operating temperature range (-37° to 74°C) Software Controllable integrated 120Ω Termination Resistor for both the Transmit and Receive side in RS-422/485 Mode PortVision DX – configure network settings for the DeviceMaster and monitor status, update firmware and if necessary, resolve issues remotely Security features – SSL & SSH management, SSL serial data stream encryption The DeviceMaster EIP-2102 provides connectivity from a wide variety of EtherNet/IP controllers and applications to a vast array of serial and Ethernet TCP/IP raw/ASCII devices. With this gateway, you can connect virtually any EtherNet/IP based PLC, SCADA, HMI, OPC Server or other controller to ASCII interface barcode scanners, RFID readers, printers, encoders, weigh scales, vision systems and many others.

Catalogs
